How to Turn Your Raspberry Pi into an IRC Server

Irc Chat Raspberry Pi Server Slack

Dating back to the 1980’s, IRC is one of the classic chat protocols that’s still the driving force behind many modern online communities, including the popular Twitch streaming platform. Today, there’s no shortage of IRC clients and servers available. You can also setup your own IRC server with Raspberry Pi.

In this article, you’ll learn how to turn your Raspberry Pi into an IRC server.

Why should I set up my own IRC server?

There are two main benefits to creating your own server:

1. Complete control over the chat experience

With your own IRC server, you’ll have the freedom to assign your own moderators, create channels for the topics you care about, and have the final say in who can and can’t join your server – perfect if you’re sick of your online discussions getting hijacked by trolls, bots, spammers and other digital undesirables.

2. Take control of your data

Are you concerned about a third party leaking your information accidentally, selling it on purpose, or using it in targeted adverts?

By running your own server, you can maintain control over all your data, ranging from your username and email address, right through to your IRC chat logs.

What you’ll need

To complete this tutorial, you’ll need:

  • Raspberry Pi running Raspberry Pi OS
  • Power cable that’s compatible with your Raspberry Pi
  • External keyboard and a way to it to your P.
  • HDMI or micro HDMI cable, depending on Raspberry Pi model
  • External monitor
  • Ethernet cable if not connecting over Wi-Fi

Getting started: set up your Raspberry Pi

To start, connect the power cable and all the peripherals to your Raspberry Pi.

Once your Raspberry Pi has booted, make sure it is connected to the Internet. Open the Terminal and type the following commands to update the system:

If Raspberry Pi does install any updates, then reboot the Pi before moving to the next step.

Install the Ircd-Hybrid server

You’ll be creating ab IRC server using the Ircd-Hybrid daemon. Install the Ircd-Hybrid package using the following command:

This download can take a while, so now’s the perfect time to go grab a cup of coffee!

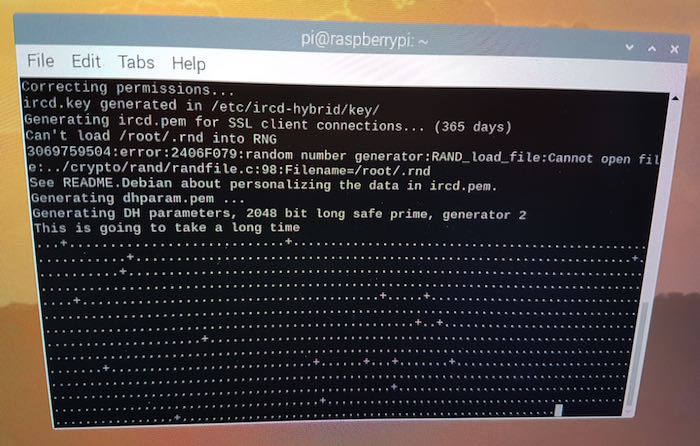

The Ircd-Hybrid software can take a while to download, depending on your Internet connection.

Secure your server: creating an encrypted password

You’ll need to create an encrypted password that you’ll use to connect to your IRC server as an operator, which will give you increased privileges, similar to a moderator or admin account.

To create an encrypted password, run the following command:

Replace “your-password-here” with the password you want to use.

The Terminal will now return a series of letters and numbers, which is your encrypted password. Make a note of this password, as you’ll need it to set up your server’s operator account.

Configuring your IRC server

Next, you’ll need to configure the Ircd-Hybrid software:

This opens the ircd.conf configuration file in Raspberry Pi’s Nano text editor.

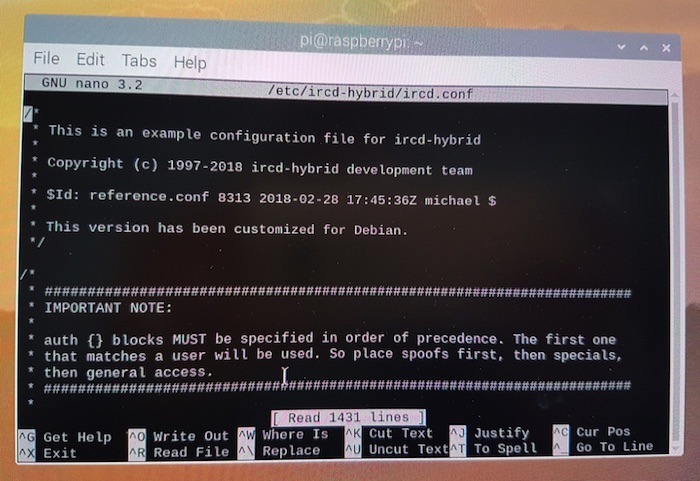

You can configure your operator account, limit the number of people who can log onto your server, and perform other configuration changes in the ircd.conf file.

This file contains many settings, but as a minimum you should make the following changes:

Give your IRC server a name:

Scroll to the serverinfo { block and find the following:

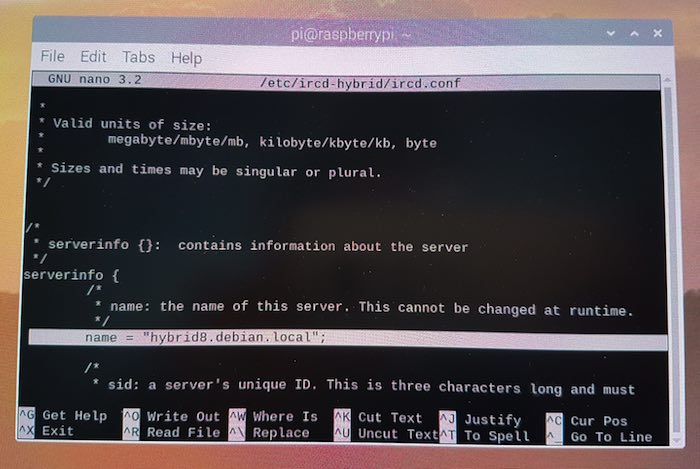

The first step, is assigning your IRC server a distinctive name.

You should give your server a unique name. For example:

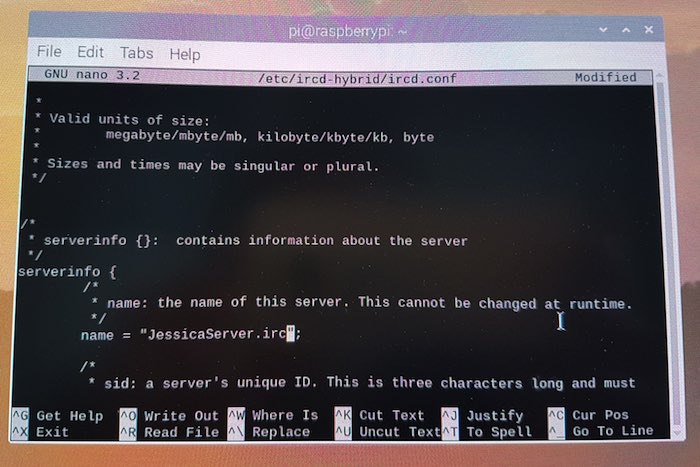

Give your Raspberry Pi server a name, via the Nano text editor.

Provide a description

You’ll need to provide a short description which will be displayed whenever someone connects to your IRC server.

Find the following:

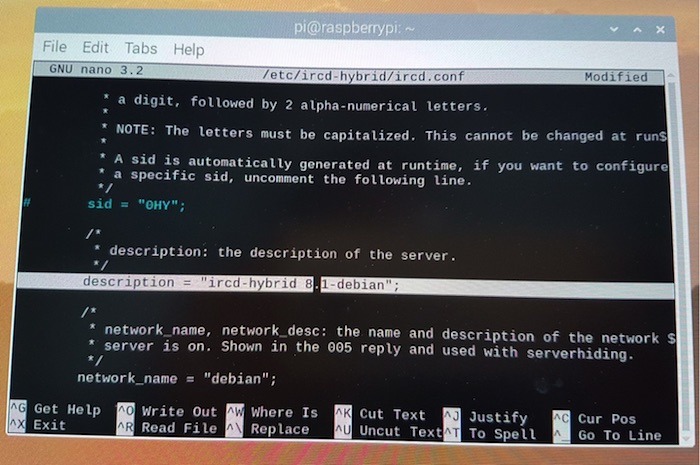

Provide a short description, which will be visible to anyone who tries to connect to your server.

Replace this text with your own description. For example:

Tell us about your network

Scroll to the following section:

These two lines describe the network where your server is running, so you should update it to reflect your specific network. For example:

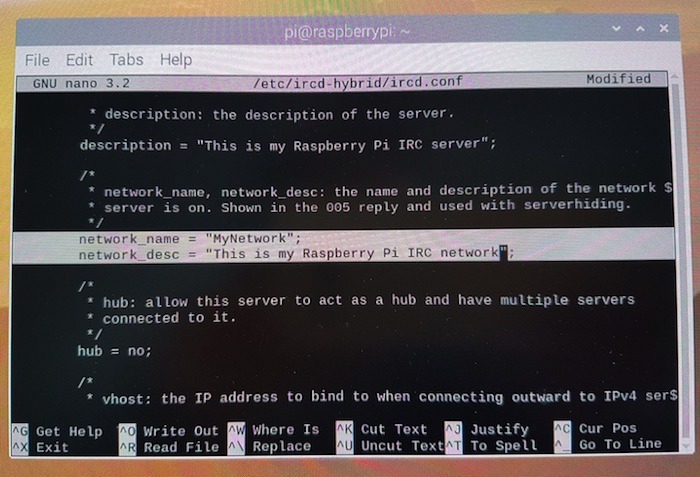

Enter some details about your network.

Set some limits

By default, Ircd-Hybrid allows 512 connections at any one time. If you want to change this limit, then find the following line:

You can now increase or decrease this 512-user limit. In this case, I am only allowing a maximum of 100 connections to my IRC server:

Create your operator

Next up is defining some settings for the operator. Scroll to the operator { block. Note that this section may require uncommenting, so delete the first # symbol in each line.

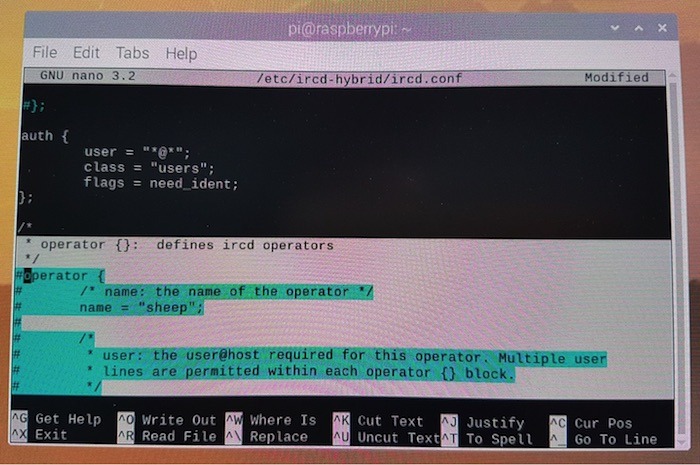

You should now enter some details for your operator account, including the encrypted password we generated earlier.

With that done, find the following line:

Replace this line with the name that you want to assign to your operator group:

You need to specify who can run the operator command by editing the following line:

This will allow anyone to access operator, if they have the correct credentials:

Finally, add the encrypted password that you generated earlier. Find the following:

Make sure you replace this line with the encrypted password and not the plain text version!

Once you’re happy with the information you’ve entered, save the configuration file by pressing the Ctrl + O keys and then Ctrl + X to close.

Run your IRC server

Restart the Hybrid-IRCD server:

Once the server restarts, it’s ready to use!

mIRC: Connecting to your Raspberry Pi server

You can connect to your IRC server using any IRC client. I’m using mIRC, but other popular alternatives include WeeChat, and LimeChat for macOS.

To connect to your IRC server, launch your chosen client and then opt to add a new server. Depending on your IRC client, you should now be prompted to enter the following information:

  • Description: This is how the server will be displayed in your IRC client, so enter any value you want to use.
  • Address: This is the IP address of your Raspberry Pi IRC server. If you don’t know the IP address, you can retrieve this information by opening a Terminal on your Raspberry Pi and running the hostname -I command.
  • Ports: You should set this to 6667, as this is the default for most servers.

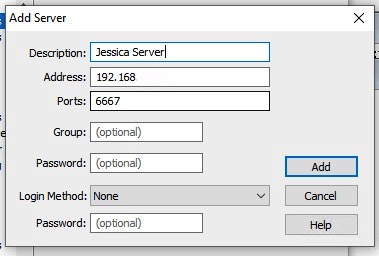

You can now connect to your IRC server, via any supported IRC client.

Click “Add” to be able to connect to your IRC server.

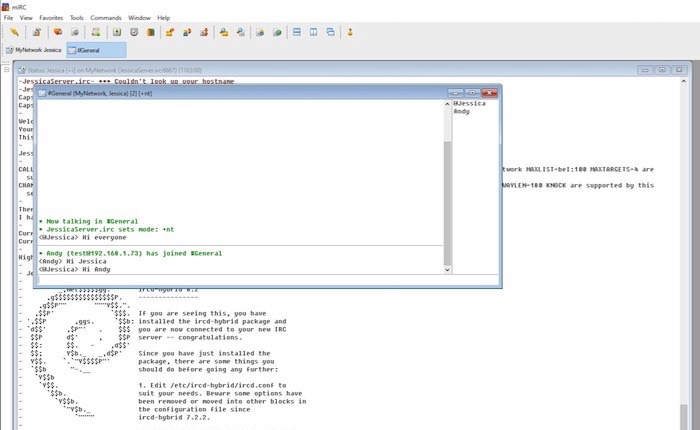

Once you're connected to your server, you're ready to start chatting!

As you can see, it is rather easy to set up an IRC server on your Raspberry Pi. There are tons of things that Raspberry Pi can do, too, like perform as a captive portal Wi-Fi access point, a music server, or even a personal web server.

Do check out our Raspberry Pi channel for more tutorials.
