How to Set Up the Password Protect Web Directory in Apache

How to Set up Password Protect Web Directory in Apache

Apache is one of the most widely used and popular web servers in the world, so it is important to keep your websites private from unauthorized users. Apache authentication can be configured to require website visitors to log in with a user ID and password. There are many ways you can password protect directories under an Apache web server.

This article describes an easy way to password protect a web directory in Apache using an .htaccess file.

Note: this tutorial is done on a Ubuntu server with Apache installed.

First, you need to install the apache2-utils package which provides a utility called htpasswd to create a password file.

You can install it by running the following command:

By default, Apache doesn’t allow the use of an .htaccess file in Ubuntu 14.04. You will need to set up the Apache config file to allow .htacces- based authentication.

You can do this by editing the Apache config file:

Find the section that begins with the Directory "/var/www/html" and change the line from AllowOverride none to AllowOverride AuthConfig

Save and close the file.

You can use the htpasswd command line utility to create a password file that Apache can use to authenticate users. Now, create a hidden .htpasswd file in the “/etc/apache2” configuration directory.

This will ask you to supply and confirm a password for authuser1.

If you want to add another user, then leave out the -c argument with htpasswd command.

Now, to create another authentication for a second user, authuser2:

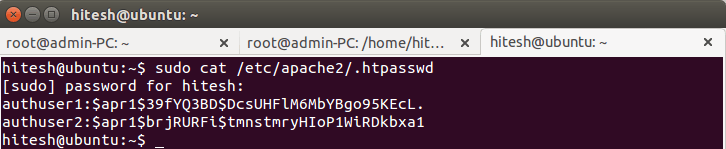

You can see the user name and the encrypted password for each record by running:

apache_auth_passwdfile

You need to grant permission to the “www-data” user to be able to read the .htpasswd file.

You need to create an “.htaccess” file in the web directory you wish to restrict. In this example I will create an “.htaccess” file in the “/var/www/html/” directory to restrict the entire document root.

Add the following content:

Here is what the above code means:

  • AuthType: This option defines the type of authentication.
  • AuthName: This is content which displays on web page when prompted for user name and password.
  • AuthUserFile: This option specifies the location of user credentials.
  • require valid-user: This indicates that only successful authenticated requests may load the page.

Save and close the file, and restart Apache to make these changes take effect.

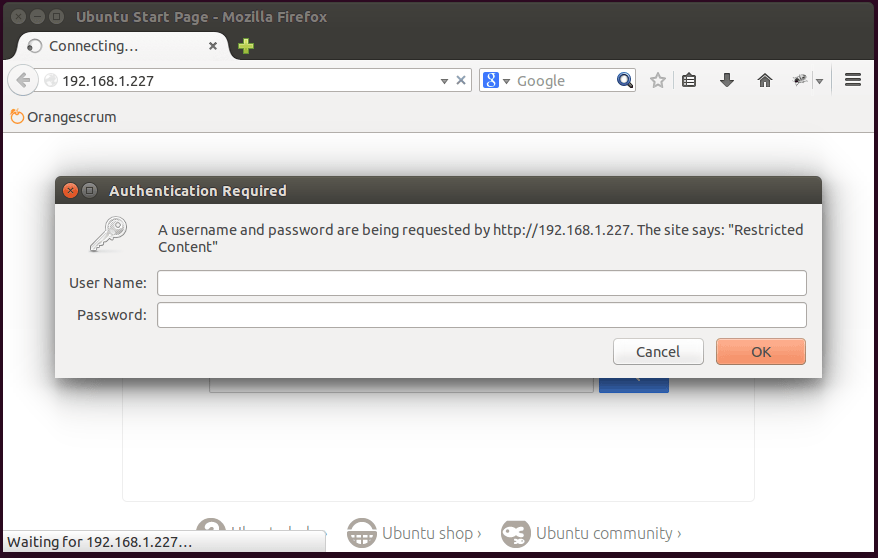

Now on a remote machine, access your website in a web browser. You will be prompted with a user name and password to access web page.

apache_auth_passwd_prompt

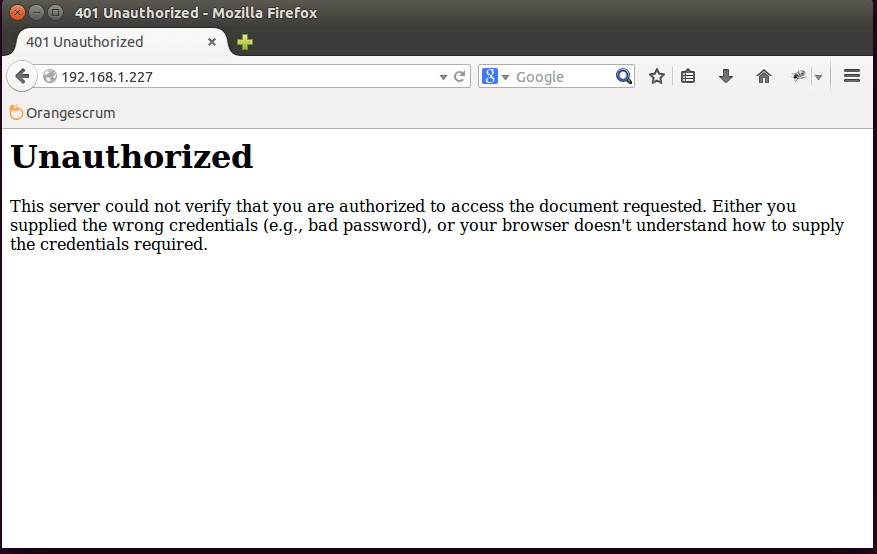

If you enter the correct user credentials, you will be allowed to access the content. If you enter the wrong user credentials or hit “Cancel,” you will see the Unauthorized error page.

apache_auth_passwd_error

You should now have enough knowledge to set up basic authentication for your Apache web server. Also remember that password protection should be combined with SSL encryption so that your credentials are not sent to the server in plain text.

2 comments

  1. Thank you, works great. I do have a few questions for doing this on Raspberry Pi.

    1. This does work. When I go into the file through the desktop, I can select “view hidden files”, I do see the password file, and it shows the same info as if I use sudo cat /etc/apache2/.htpasswd. However, i am no unable to open that file.

    These commands do not work for me:
    sudo chown www-data:www-data /etc/httpd/.htpasswd
    sudo chmod 0660 /etc/httpd/.htpasswd

    Any thoughts on this?

    2. How do you go about changing the passwrod if needed?

    THank you so much for all your time and patience. Have a great day!

    • Hey, I also have a Raspberry Pi. The chown www-data:www-data command didn’t work for me as well, but I found out that it wasn’t necessary, as I could point the htaccess file password to /etc/apache2/.htpasswd and it worked.
