Mastering 3D Lighting in Blender

Making images in Blender 3D has a lot in common with photography. In fact, if you have any photographic skills, these will transfer nicely into 3D software like Blender.

In previous articles we have discussed how you light a scene on a basic level. But how can you use all the different kinds of lamp for something approaching real cinematography?

Cinematography is all about choosing the right lights. In the virtual world of a 3D program the lights are all computed rather than real, but they perform the same function as real world lights. To get good lighting in 3D graphics images, you need to have a grasp of lighting in the real world, so a good tip is to learn how to light photographs from photography tutorials out there on the Internet.

The basic types of lamps in Blender are as follows: Point, Sun, Spot, Hemi and Area.

Point

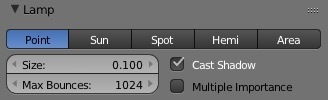

blender-lighting-mastery-menu-point

These lights are a tiny ball of light which are omnidirectional – that is to say scattering light in all directions like a lightbulb. Shadows fan out from the source centre in radiating lines.

blender-lighting-mastery-point

Sun

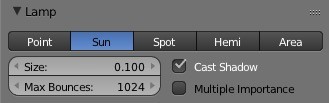

blender-lighting-mastery-menu-sun

Sun lights emulate the light you get from the sun; the light comes down from the source in parallel lines. Shadows cast straight down from the source and are soft.

blender-lighting-mastery-sunlight

Spot

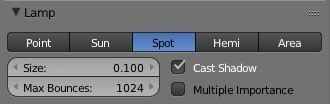

blender-lighting-mastery-menu-spot

Spotlights have a point source, but they fan out at a particular angle set in the properties, and they have a soft transition from the middle to the outer radius, the same as a real spotlight. Shadows are hard-edged and follow the angle of the beam.

blender-lighting-mastery-spotlight

Hemi

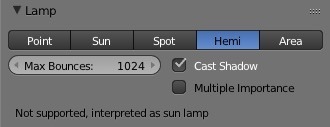

blender-lighting-mastery-menu-hemi

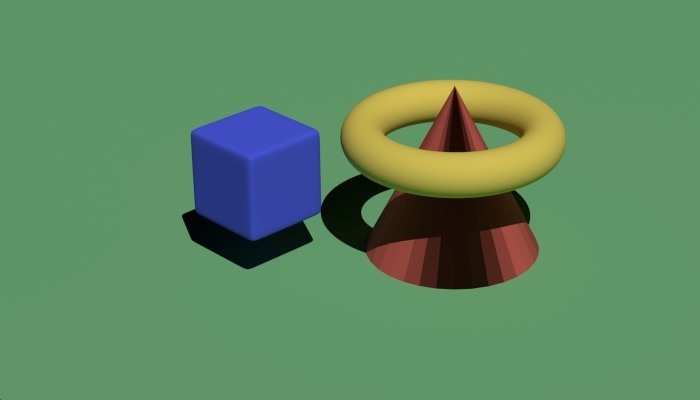

These lights are like spotlights, but the difference is the source is a half sphere and the light focusses in straight lines, like a lighting brolly. Shadows are hard-edged.

blender-lighting-mastery-hemi

Area

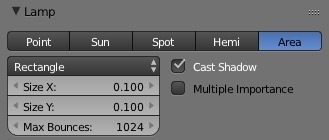

blender-lighting-mastery-menu-area

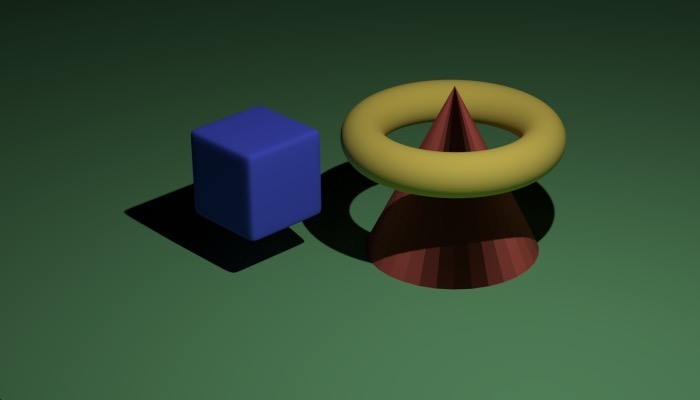

Area lights are flat planes which cast light like a softbox or light reflected from a large reflective surface. Shadows are sharp when the objects are close to a surface but softer when they are distant.

blender-lighting-mastery-area

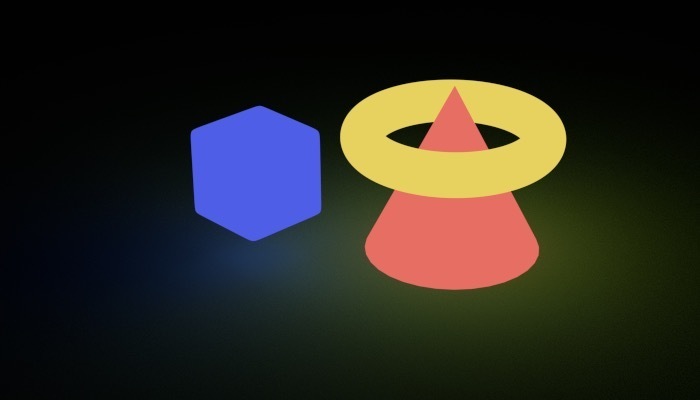

Another kind of light you can have in Blender is to turn an object into a light by selecting a surface texture of Emission. The texture emits light, meaning you can make a ball, cube or plane be a light emitter. The light is soft and the shadows smooth.

You can turn objects into lights, the benefit being that you can see the lights. The standard lights in Blender are invisible to the camera, but lights which are objects can be seen. The only light sources in this scene are the objects themselves.

blender-lighting-mastery-emission

To set an object to an emission surface, click on the Materials properties, click on the surface drop-down and select “Emission” from the drop-down.

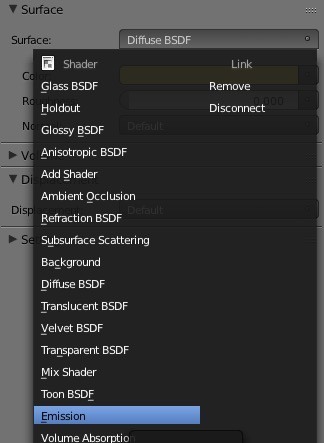

blender-lighting-mastery-emission-surface

The basic lighting setup taught by all photography courses is to have a key, fill and rim or edge light.

The key light is either a strong, sun-like light or spotlight shining on the front of the object being lit. This casts light on the front and top of the object and shadows on the surface over any undercuts. In this example we used a sun light above and to the right of the camera. Strength is set to 700.

blender-lighting-mastery-skull-no-rim-no-fill

The fill light is positioned opposite to the key light to fill in any shadows. In this example, an Area light is positioned below the camera and to the left pointing up at the object. Strength is set to 75.

blender-lighting-mastery-skull-no-rim

The rim or edge light is positioned behind the object pointing towards the object and the camera to highlight the edge of the object to separate it from its background. In this example, a Hemi light is positioned above, to the left and behind the skull pointing forwards towards the camera. The Strength is set to 2.

blender-lighting-mastery-skull-all

And that is how you light something perfectly.

The main tip for setting up lights and even textures in Blender is to use a rendered viewport. This makes a draft-quality rendering of the light that you can see updated in real time to allow you to position lights and shadows perfectly while seeing the effects of your light positions live on the screen.

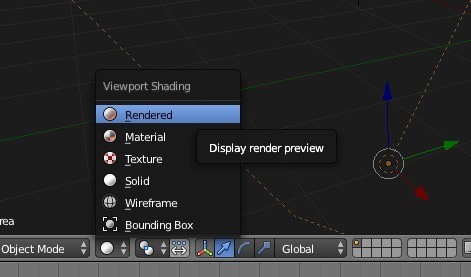

blender-lighting-mastery-rendered-view

Learn as much as you can about real world lighting for photography and transfer that knowledge to the 3D virtual world of Blender for fantastic lighting.

If you have any questions about lighting for 3D graphics or have any 3D lighting tips to share, please do so in the comments below.
