How to Install Windows 11 on a Raspberry Pi 4

Installing Windows 11 on your Raspberry Pi 4 can be as easy as pie.

Install Windows Raspberry Pi Featured

Are you looking to install Windows 11 on your Raspberry Pi 4? Not only is this a fun project to try, but it also opens up a world of possibilities if you need a pocket-sized PC.

With our guide, you’ll learn how to bypass Microsoft’s stringent requirements and install Windows 11 on your Raspberry Pi 4. The best part is that you can do the installation from a Raspberry Pi or a PC without too many commands or technical skills.

Requirements for Installing Windows 11 on Raspberry Pi

  • Raspberry Pi 4 – Both the 4GB and 8GB Pi versions will work. But for a smoother experience go with 8GB. Also, you’ll need to install and set up Raspberry Pi OS.
  • External SSD drive or USB flash drive – This is where you’ll install Windows 11. We recommend going with an external SSD drive since it will improve the performance of your system. The drive should be at least 64GB.
  • SD Card – If you want to install Windows 11 directly from the Raspberry Pi, you’ll need a decent SD card to host Raspberry Pi OS.
  • USB Keyboard, USB Mouse, and an HDMI Monitor.
  • Raspberry Pi firmware that is up-to-date.
  • Reliable internet connection, either Wi-Fi or Ethernet.
  • Windows PC if you want to install Windows 11 from another Windows PC.

Update Your Raspberry Pi to the Latest Firmware

To enable your Raspberry Pi 4 to boot from USB, you need to ensure it has the latest firmware. So before anything you will need to update your device to the latest firmware.

Open a “Terminal” window and enter the following commands.

sudo apt update
sudo apt full-upgrade
sudo shutdown - r

This will update all the installed packages to the latest version and restart the device.

Install Windows 11 on Raspberry Pi

There are two options when it comes to getting Windows 11 to run on your Raspberry Pi 4, and we’ll detail both in what follows. We’ll start with the more convenient route.

Method 1: From Raspberry Pi OS

Installing directly from the Raspberry Pi OS is the easiest way to install Windows on a Raspberry Pi 4. The only drawback is that it’s slow compared to installing from a PC. Here’s how to go about it:

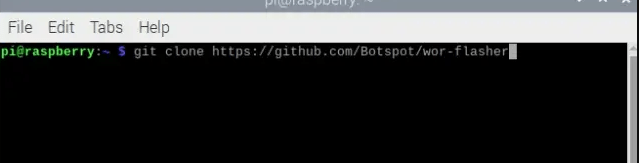

  1. WoR (Windows on Raspberry Pi) is a tool for installing Windows 11 on a USB disk. To get started, open “Terminal” and then go ahead and install WoR Flasher using the following command.
git clone https://github.com/Botspot/wor-flasher
Windows11 Raspberrypi4 Installing Wor

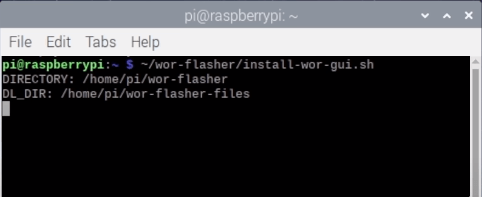

  1. Run WoR Flasher with the command below. Press Y when prompted to complete the installation.
~/wor-flasher/install-wor-gui.sh
Windows11 Raspberrypi4 Installing Wor 2. 1

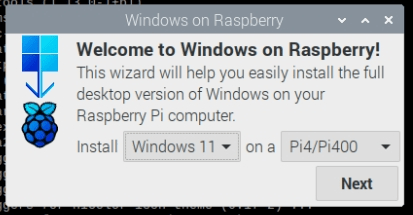

  1. In the WoR window that pops up, select Windows 11 and Pi4/400 respectively. Click “Next”.
Windows11 Raspberrypi4 Installing Wor 3
  1. Select a language and then choose where you want to install Windows 11. Make sure the USB drive is connected.

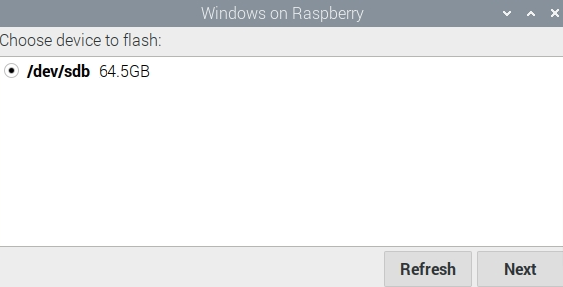

  2. Now choose the drive where you want to install Windows 11 on and then press “Next”.
Windows11 Raspberrypi4 Installing Wor 4
  1. On the next screen press “Flash”.

Be patient as WoR Flasher installs Windows. The time it takes will depend on the speed of your internet connection and the USB drive you’re using. Keep the Raspberry Pi powered on throughout the installation process.

If you’re having trouble, check our guide on booting your Raspberry Pi from USB.

  1. Power off the Raspberry Pi 4 and remove the SD card running Raspberry Pi OS.
  2. Connect the USB drive you flashed in the previous step to the Raspberry Pi via USB3 before powering it on.

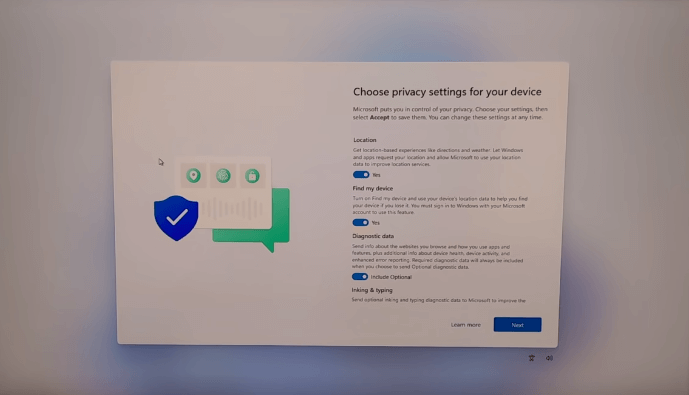

  3. After the Pi starts, use the Windows Installation Wizard to set up Windows.
Windows11 Raspberrypi4 Setup Windows 1
  1. After setup is complete, you’ll see the Windows 11 user interface.
Windows11 Raspberrypi4 Setup Windows 2 1

Method 2: From Another Windows PC

Installing Windows 11 to your Raspberry Pi 4 from another PC is much faster than using the Raspberry Pi OS method due to the more powerful processor. Even then, it’s slightly more complicated. Here’s how to go about it:

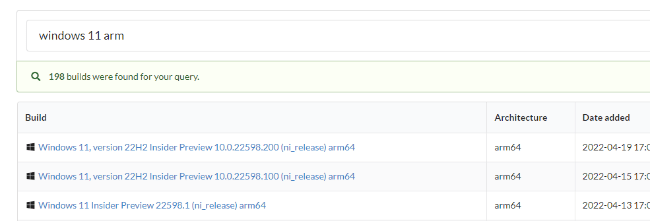

  1. Go to UUPdump and enter “Windows 11 arm” in the search bar.
Windows11 Raspberrypi4 Install From Pc Step1png

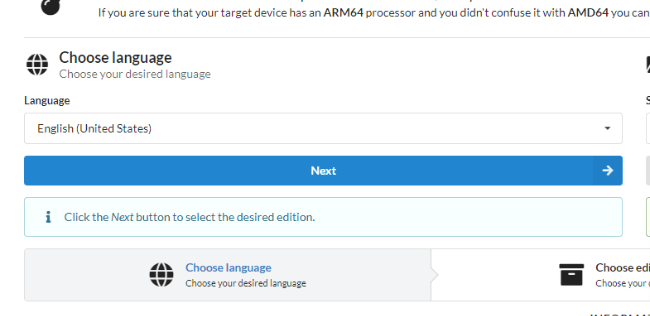

  1. Now select your language and the version of Windows you want to install (we’ve selected the latest build for arm64 version). Click “Next” to proceed.
Windows11 Raspberrypi4 Install From Pc Step2

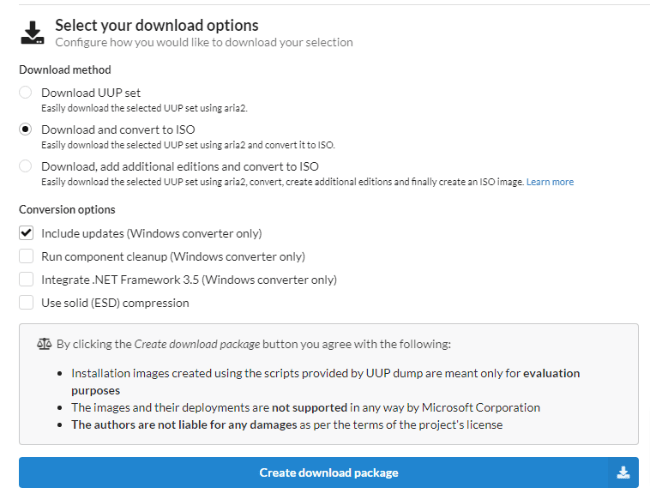

  1. Select “Download and Convert to ISO” and click on “Create download package.” A zip file will download to your PC.
Windows11 Raspberrypi4 Install From Pc Step3
  1. Extract the zip file and run the “uup_download_windows.cmd” script as administrator.
  2. The script will download all Windows components and create a Windows 11 ARM ISO file.
  1. Download WoR imager and extract the files. After you’re done, run the “WoR.exe” file as administrator.
  2. Select your language of choice and then click “Next”.

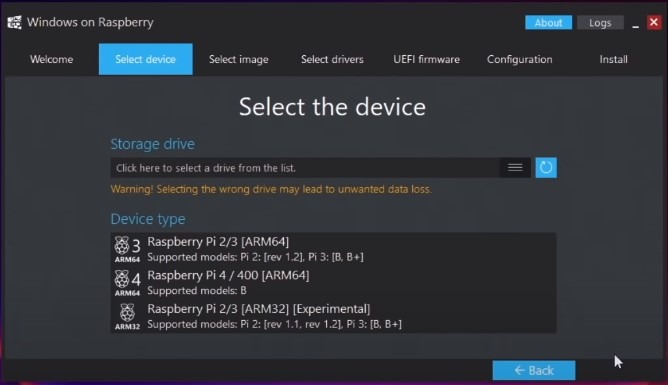

  3. Now choose the “Storage drive” (the USB drive you’re flashing Windows 11 into) and the “Device type” (Raspberry Pi 4).
Windows11 Raspberrypi4 Install Wor 1

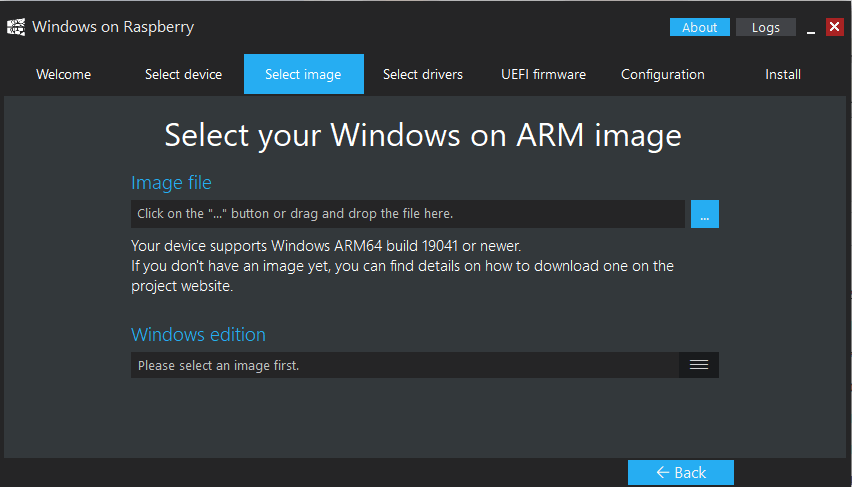

  1. Select the Windows 11 ARM ISO file you created. You’ll find it in the UUPdump script folder. The “Windows edition” field below will then auto-populate. Click “Next” to proceed.
Windows11 Raspberrypi4 Install Wor

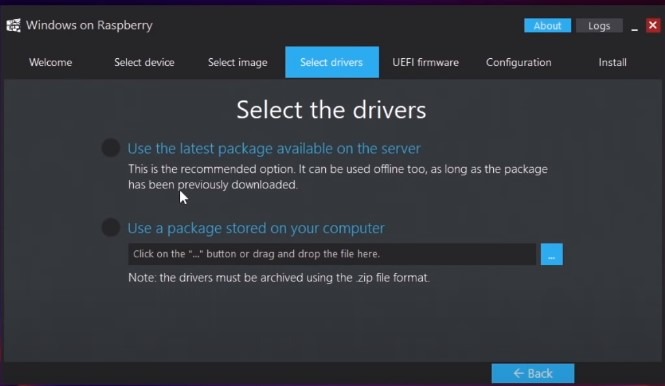

  1. Select the drivers to be installed. Choose the “Use the latest package available on the server” option. Read and accept the terms to proceed. Click “Next”.
Windows11 Raspberrypi4 Install Wor 3

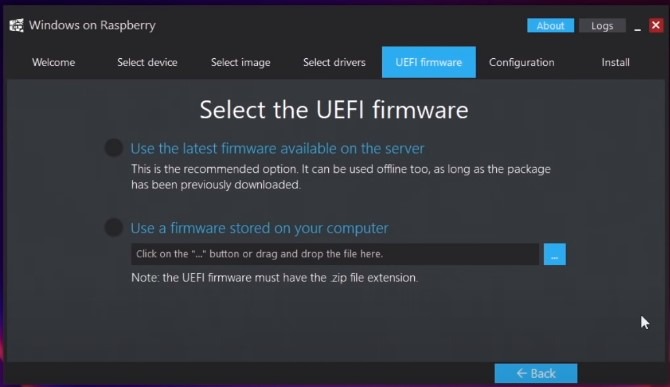

  1. Next, in the UEFI Firmware tab, go for the “Use the latest firmware available on the server” option.
Windows11 Raspberrypi4 Install Wor 4
  1. Give it some time to download the drivers and click “Next”.
  2. On the next page, you’ll get an overview of the configuration settings. Click “Next”.
  3. You’ll be taken the installation overview screen.

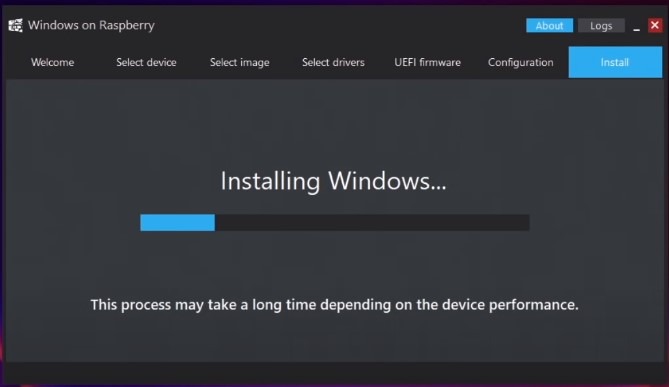

  4. Confirm that everything is in order, and then click “Install” to kickstart the installation. This process will take some time, depending on how fast your drive is.
Windows11 Raspberrypi4 Install Wor 7

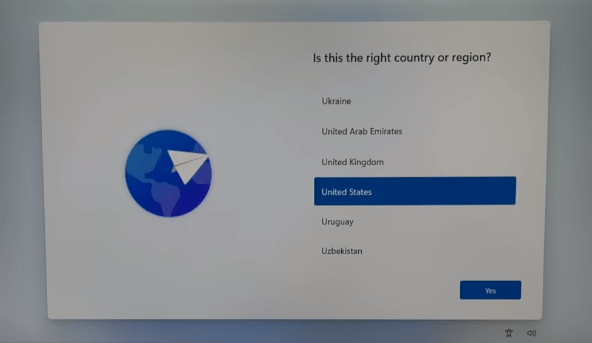

  1. Plug the USB drive into your Raspberry Pi 4 and then boot it up. The Windows Wizard will guide you through the Windows 11 setup process.
Windows11 Raspberrypi4 Setup From Pc 1

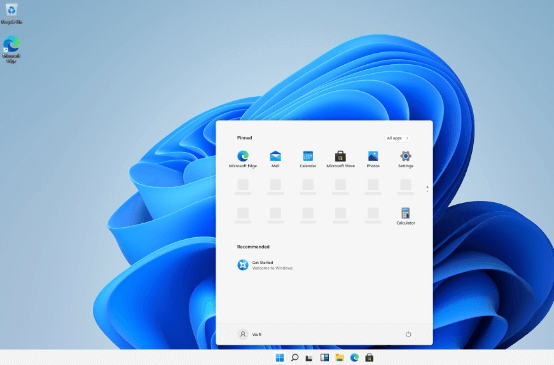

  1. After setup is complete, you’ll be able to boot into Windows 11.
Windows11 Raspberrypi4 Setup Windows 2 2

The process of setting up Windows on the Raspberry Pi is pretty much the same as that of setting up Windows on a PC.

Frequently Asked Questions

I have only 3GB of RAM available on my 4GB RAM Raspberry Pi 4. What's happening and how do I fix it?

A certain option might be enabled that is limiting your RAM capacity. To fix the issue:

  1. Reboot your Raspberry Pi and keep pressing ESC. The Pi will boot into UEFI.
  2. Click on “Device Manager” and then “Raspberry Pi Configuration.”
  3. Select Advanced Configuration and then change the “Limit RAM to 3GB” setting to Disabled.

Can I install Windows 11 on the Raspberry Pi 2 and Pi 3?

Unfortunately, the Raspberry Pi 2 and Pi 3 can’t run Windows 11. The older generation devices don’t have the power to run Windows 11. The Raspberry Pi4 has enough RAM and processing power to make it a real option for running Windows 11. However, if you want to run Windows on the Pi 2 and Pi 3, you can install Windows 10 IoT.

Can the Raspberry Pi 4 replace a PC?

While the Raspberry Pi 4 can’t match up to a professional desktop in terms of performance, it’s possible to use it as a mini pc. It’s adequate for most tasks you’d do on a PC and is particularly suited for programming.
