How to Install and Configure Ntop to Monitor Network in Ubuntu

How to Install and Configure Ntop On Ubuntu

Ntop is an open-source and very useful network-monitoring tool that displays a list of hosts that are currently using the network and reports information concerning the IP traffic generated by each host. You can use a web browser to monitor your network traffic, connections and bandwidth usage. Ntop monitors and reports host traffic and supports various protocols like TCP/UDP/ICMP, IPX, ARP, DLC, Decnet, AppleTalk, and Netbios.

In this tutorial I will explain how to install and configure Ntop on Ubuntu 14.04.

Installing Ntop

You can install ntop by running the following command:

sudo apt-get install ntop

During installation you will be asked to enter the password for the administrator. Simply enter your password and finish installation.

After installing ntop, start ntop service:

sudo /etc/init.d/ntop start

By default, ntop listens on port 3000 to display network usage via a web browser.

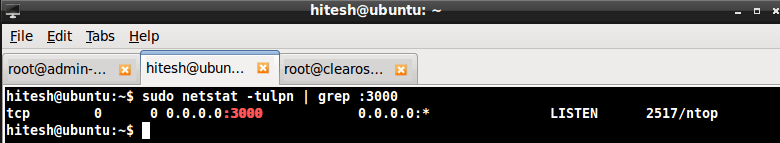

To verify ntop is working, run:

sudo netstat -tulpn | grep :3000

You should see an output like the following:

ntop_netstat

View Ntop

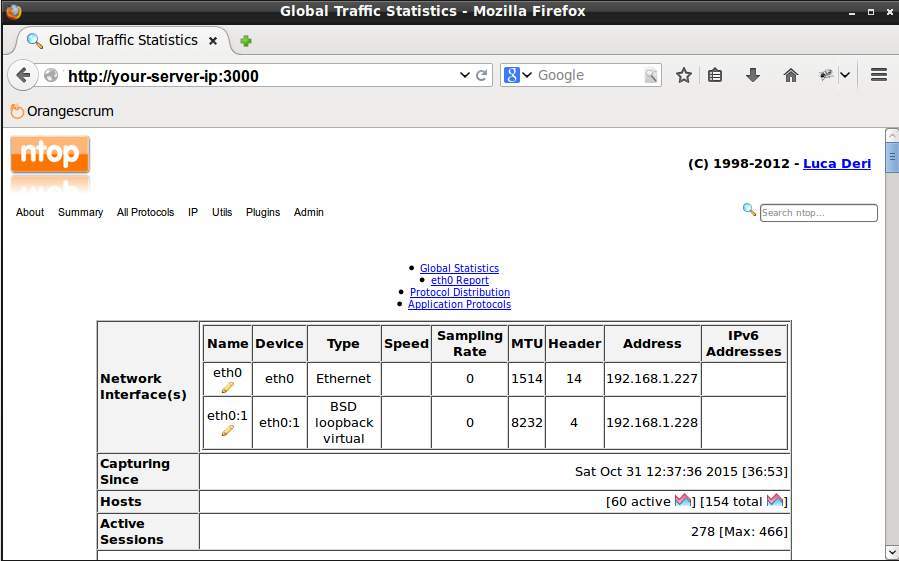

You can see the ntop web interface by typing the url http://your-server-ip:3000 on your web browser.

ntop_welcome_page

The ntop screen has the following main menus:

  • About: what are ntop, credits, documentations and configurations.
  • Summary: traffic, hosts, network load, network flows
  • All protocols: traffic, throughput, activity
  • IP: summary, traffic directions, local
  • Utils: data dump, view log
  • Plugins: many plugins to enable or configure
  • Admin: configure, shutdown

You can see a screenshot of some menus in the following images.

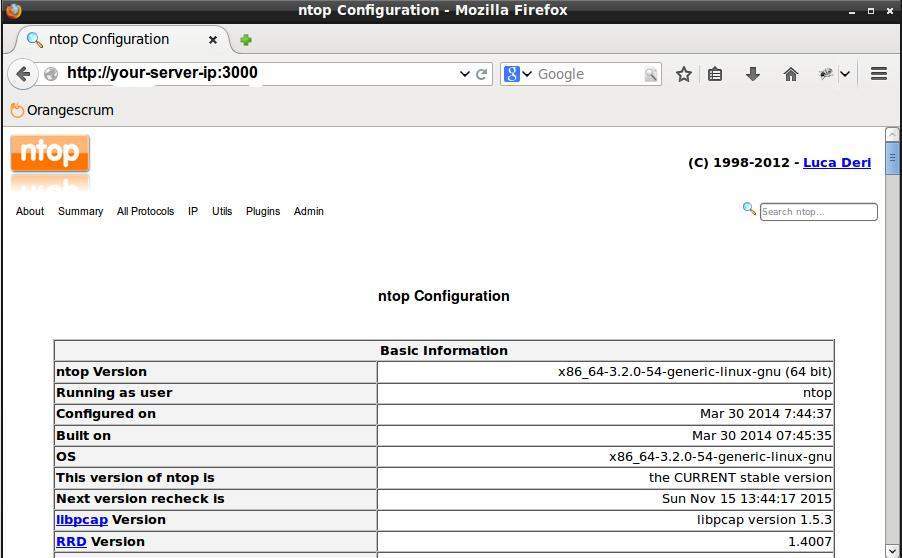

1. Ntop Configuration

You will see the version of ntop, name of operation system and date of ntop configuration.

ntop_configuration_page

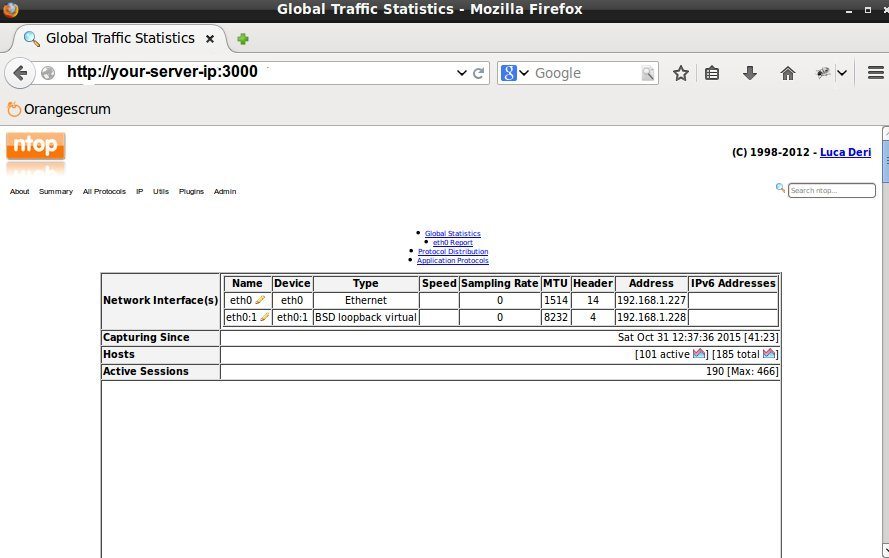

2. Global Traffic Status

You will see the number of the network interface with IP address and global network traffic statistics.

ntop_global_traffic_page

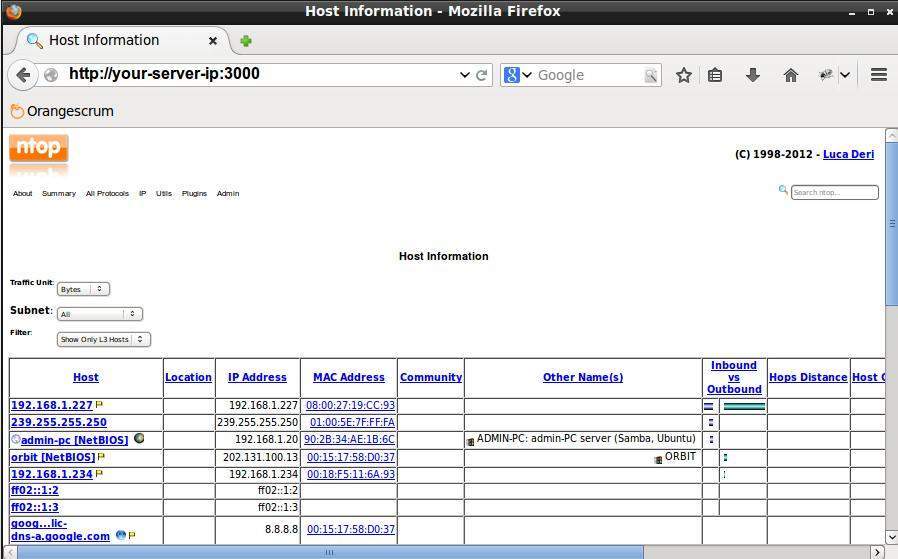

3. Host Information

You will see the information of your host system like hostname, IP address, MAC address, DNS and your real IP address.

ntop_hostinfo_page

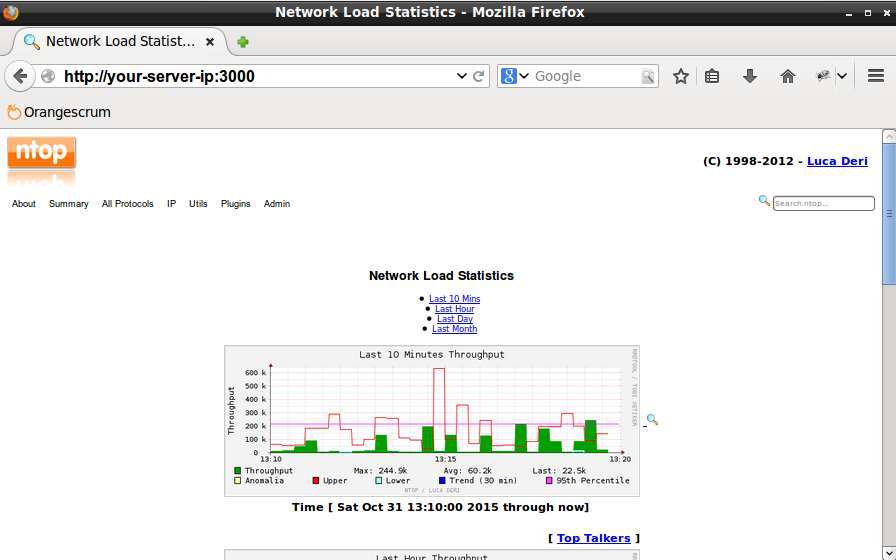

4. Network Load Statistics

You will see your network load statistics of the last ten minutes, last hour, last day and last month.

ntop_network_load_page

Conclusion

After installing Ntop, you can easily monitor your network usage, network load and network traffic in real time. Feel free to leave a comment if you have any questions.
