If you have tried to dual boot your Windows system with Linux, then you have probably encountered some changes that may not be welcome. When installing Linux in this environment, the GRUB bootloader will overwrite the Windows bootloader within the Master Boot Record (MBR).
This is also true in reverse: if you have installed Linux first, then decide to install Windows, the Windows bootloader will overwrite GRUB, and you will find that there is no way to boot into your Linux Desktop.
Any of these scenarios can be problematic for the new user, but thankfully, with a little patience and care, there are ways to restore the bootloader, and in the process, repair the MBR.

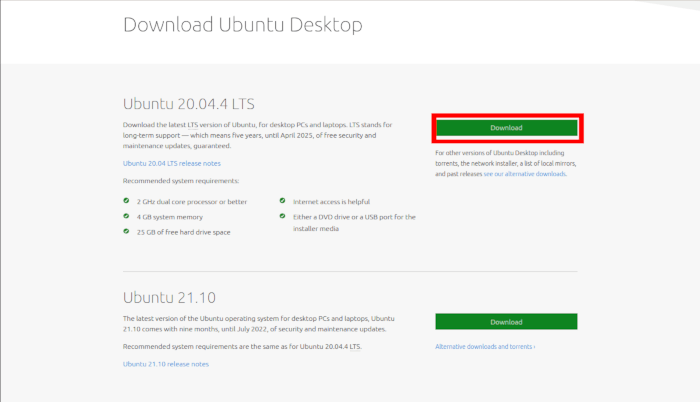

The first step will be to download and create your Linux live CD or USB. Ubuntu is by far the easiest and most accessible distribution to use, although most Linux distributions can be used for this. Using a different computer, browse to the Ubuntu website and download the latest copy that is right for your architecture.
For example, I am downloading the Ubuntu 20.04.4 LTS version for amd64, as my machine is a 64-bit system.
Follow this guide to create a Linux live USB on Windows.
Booting into Ubuntu Live USB
With your live media created, the next steps are to boot your machine into Ubuntu using your computer’s BIOS and select “Ubuntu” from the GRUB menu.
If this fails, you need to make sure that Secure Boot is DISABLED in the BIOS, as Secure Boot will only allow Windows-based operating systems to boot in the machine.

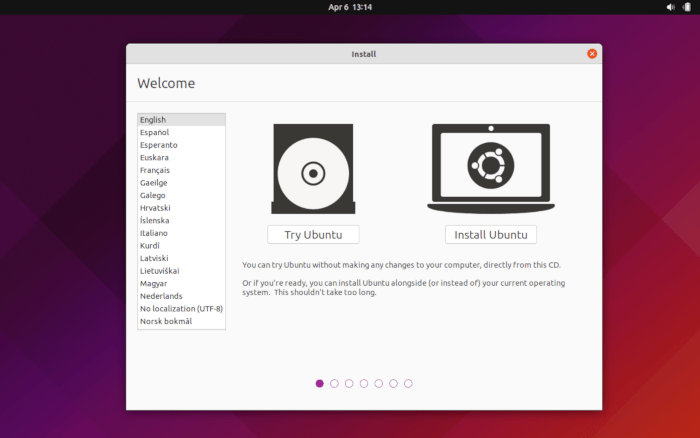

Once the desktop has launched, click the “Try Ubuntu” option to load Ubuntu as a live disk.

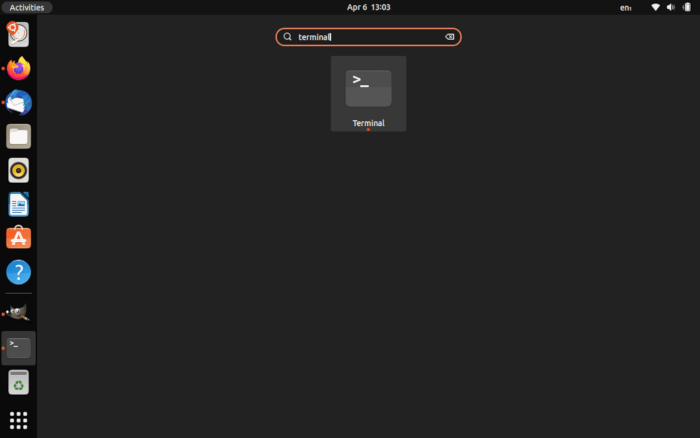

With that done, open the Terminal from the Applications menu located in the bottom-left corner of the screen.
Note: at this point, be aware that you are dealing with your hard disk directly and read through the guide fully before making any changes, otherwise your entire system may become unstable or corrupted.
By far the easiest way to repair the MBR is by using a small utility called “boot-repair” as opposed to working directly in the Terminal.
Method One: Boot Repair Utility
First, you’ll need to add the repository. Type:
sudo add-apt-repository ppa:yannubuntu/boot-repair sudo apt update sudo apt install boot-repair

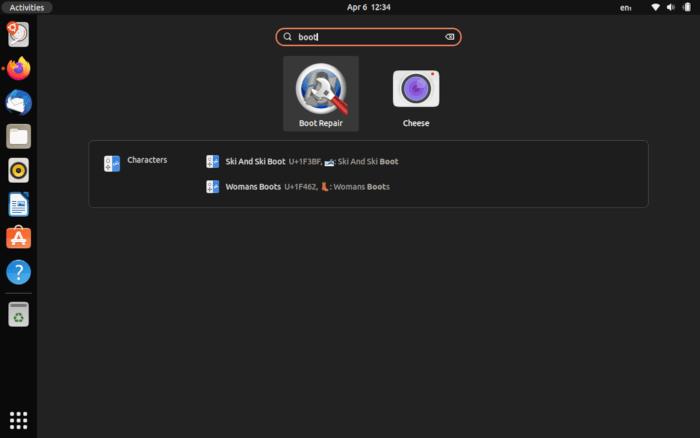

Once installed, find the application within your Applications menu and click to start.

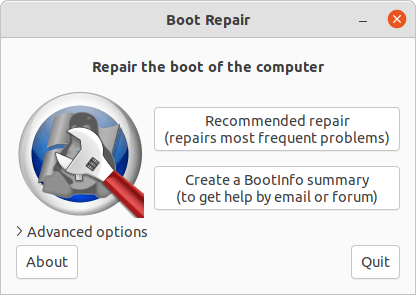

Once the utility starts, select the repair type. For most people, this will be the recommended repair.

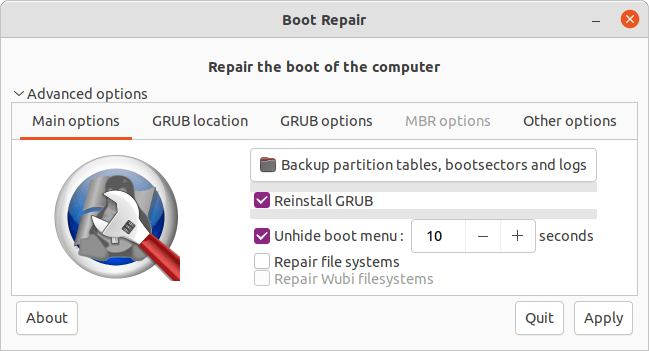

When the utility finishes, you should be able to boot your system and select either Windows or Linux from the GRUB menu. Running the utility will also let you change or investigate some of the other options above if you require a more complex boot repair. Clicking “Restore MBR” will enable you to use the MBR tab.
If you get stuck, Ubuntu has a guide on their website.
Method Two: Updating Your GRUB Configuration

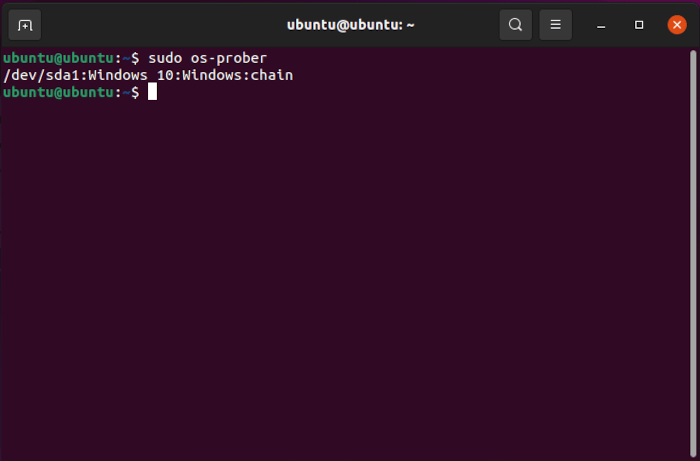

Another way to fix the MBR is by directly updating your GRUB configuration. To do that, you need to first make sure that the live disk detects your Windows install. From there, run the
This program will check all of the available disks and partitions for any operating system in your machine. It does this by looking for specific boot files or partitions that a typical operating system installation creates.
One important thing to note, however, is that if
os-prober did not detect the Windows partition, it is likely that its boot partition is already corrupt.
If that is the case, the preferred option is to reinstall Windows rather than attempt to rebuild its boot partition.
Knowing that, you can recreate the GRUB configuration from the live disk by running this command:
This will rebuild the default GRUB configuration and include the Windows boot partition to it again. Once done, you can now reboot your system and test whether GRUB detected your Windows installation.
Method Three: Syslinux
Aside from using the default GRUB tools, you can also use Syslinux to update your bootloader.

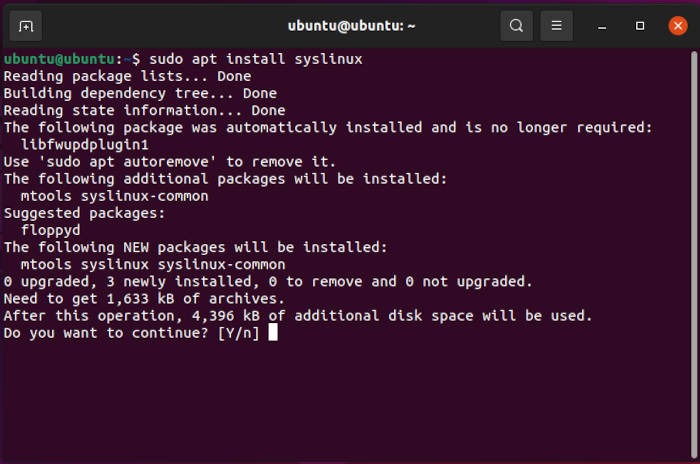

To do that, open a terminal as before and type:
sudo apt install syslinux
Next, type the following, remembering to change the drive name “sda” as appropriate:

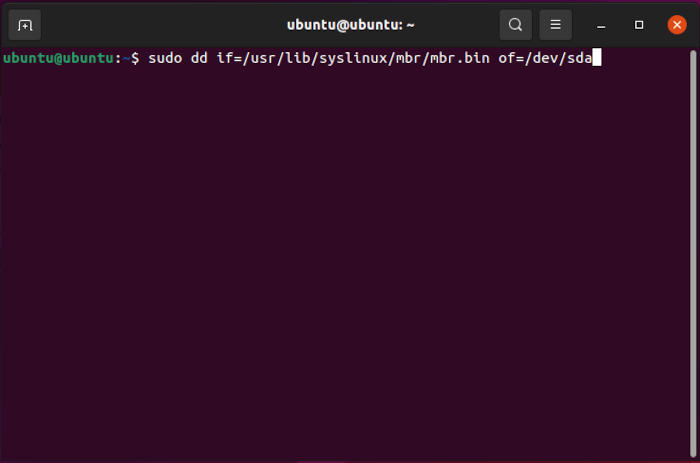

sudo dd if=/usr/lib/syslinux/mbr/mbr.bin of=/dev/sda
This will write an MBR binary to the first few sectors of the hard disk. Doing this will make sure that any problem with those first few sectors in Windows are fixed. Once done, you can reboot your machine to test if the reconfiguration worked.
Method Four: mbr
You can also use the simpler mbr tool to rebuild the MBR binary. Similar to syslinux, you will need to first install it to your live disk:
sudo apt install mbr
From there, run the following command to reinstall the MBR binary in your Windows partition:

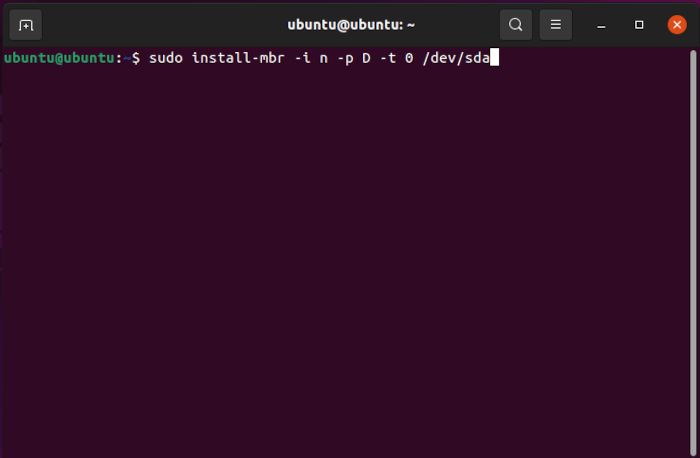

sudo install-mbr -i n -p D -t 0 /dev/sda
You can now reboot your machine to check whether the installed MBR binary was detected in GRUB.
Method Five: LILO
Lastly, you can also use LILO to fix your Windows’ MBR. Similar to GRUB and syslinux, LILO is also a bootloader program that can update your GRUB configuration. To use it, however, you need to install it to your live disk:

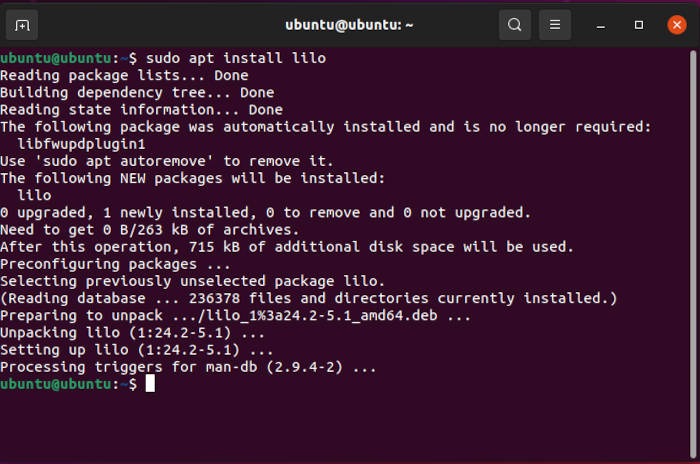

sudo apt install lilo
From there, writing an MBR file to your Windows boot partition is extremely simple. To do that, run the following command:

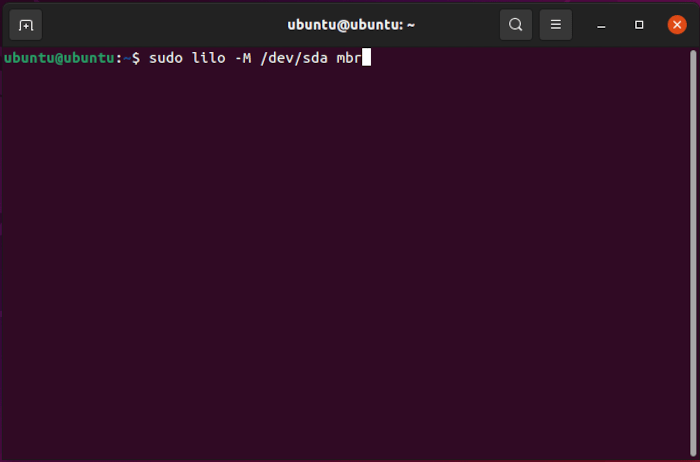

sudo lilo -M /dev/sda mbr
This command will write an MBR binary in the boot partition of the device that you specified. In my case, I am installing the MBR binary in “/dev/sda.” Once done, you can reboot your computer to check whether GRUB detected the newly installed MBR.
Congratulations! You now know five simple ways to rebuild your Windows’ MBR with Ubuntu Linux. If all this talk made you interested in what Linux can offer, check out the best Linux-Libre distributions that you can install today.
Frequently Asked Questions
1. Can I manually edit my GRUB configuration?
Yes. However, updating your GRUB configuration manually can introduce additional errors that you may not expect. Further, any problems that come up in configuring your grub.cfg file can result in the system not seeing any boot files at all.
Knowing that, if you still want to manually configure your grub.cfg, you need to make sure that you know what you are doing and that you have a backup of an unmodified grub.cfg. To do that, run the following command:
sudo cp /boot/grub/grub.cfg /boot/grub/grub.cfg.old
2. Can I use a different Linux distribution to rescue my system?
Yes! All of the tools that were described in this article are available in most Linux distributions. For example, you can do the same steps to install an MBR file from LILO in an Arch Linux system.
The only difference is that you need to run pacman instead of installing the LILO package through apt:
sudo pacman -S lilo
3. Can I get my files back even if the Windows Boot Partition is corrupted?
Yes! To do that, find the partition in your disk that contains all the Windows data. For example, I used
lsblk to find my Windows partition in “/dev/sda2.”
Knowing that, you need to install ntfs-3g. This will allow you to mount the Windows NTFS filesystem in Linux:
sudo apt install ntfs-3g
Once done, you can run the following command to mount the NTFS filesystem to your local filesystem:
sudo ntfs-3g /dev/sda2 /mnt
Finally, get the files from your corrupted Windows partition to a backup drive.
