Even if you haven’t built a gaming PC with abundant RGB, chances are that at least one of your peripherals has some degree of RGB implementation. To make full use of all the RGB components in a build, users currently need to mess around with at least one additional piece of software, either from one of the device manufacturers or a dedicated third-party software that can sync all their RGB components. But a Windows 11 experimental feature could soon make these programs obsolete. This tutorial shows you how to test and try this RGB control feature before it even appears in the OS.

How to Add RGB Control Need on Windows

As things stand, many PC users own components and peripherals from multiple manufacturers: motherboards from Gigabyte, RAM from Corsair, GPUs from MSI, mice from Razer, and so on. As a result, they end up installing RGB customization programs from each of these manufacturers. With too many programs to manage, a single software that can do it all sounds much better.

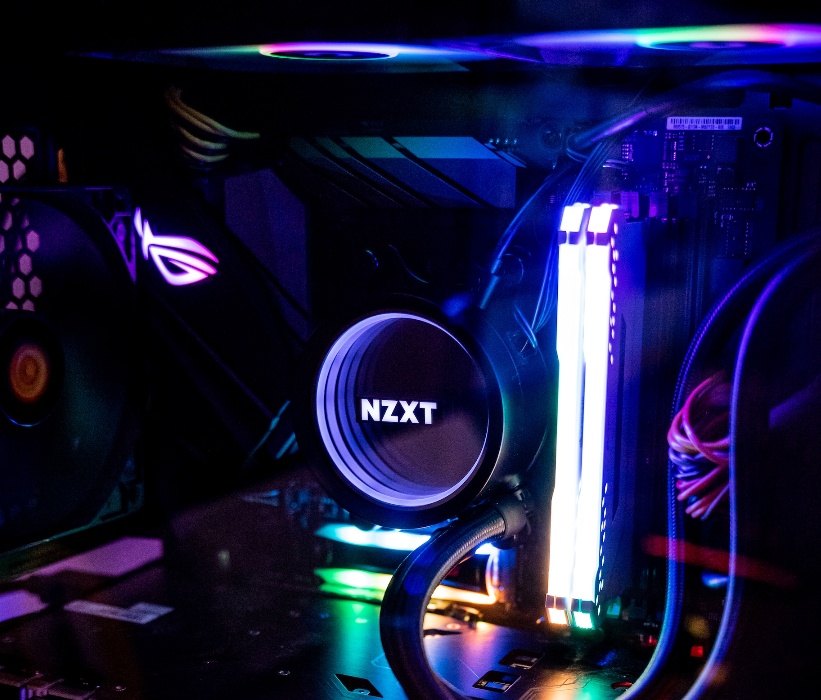

Inside look at PC with RGB lighting on.
Image source: Unsplash

Fortunately, Microsoft has recently added a new experimental feature to one of their Windows preview builds that aims to replace all additional RGB software. The Lighting option was added under “Settings -> Personalization” as part of the Windows Insider Program. To test this lighting feature, you’ll need to enroll in the program and update your Windows version to the latest preview build.

Good to know: in the market for a new graphics card? Check out our buying guide to learn what to look for when buying a GPU.

Update Windows 11 to the Latest Insider Build

To enroll in the Windows Insider Program, follow the steps below:

  1. Press Win +I to open the Settings app and select “Windows Update” from the options on the left.

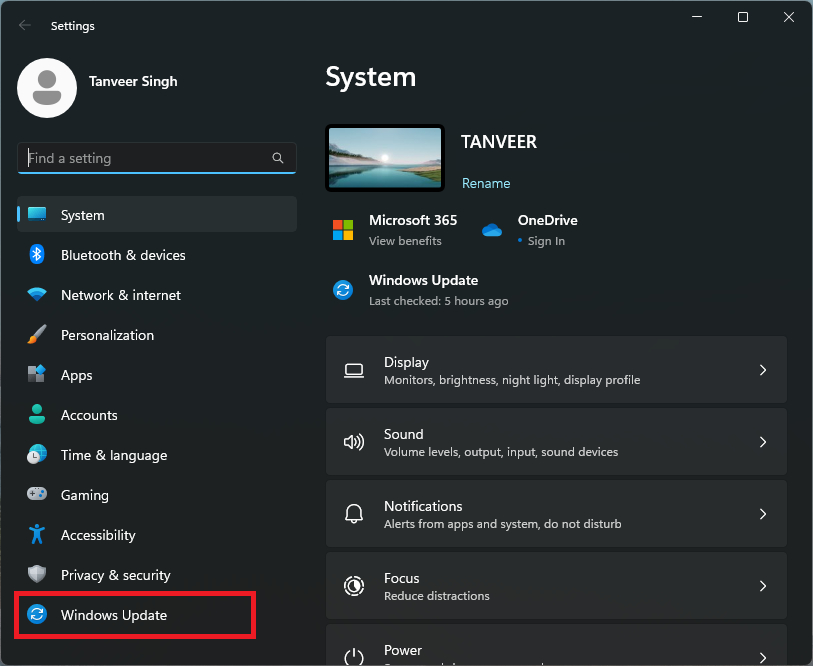

Navigating to "Windows Update" in Windows Settings.
  1. Click “Windows Insider Program” to initiate the enrolling process. You’ll need to select a Microsoft account to enroll and a channel. Select the “Dev” or “Canary” channel to proceed.

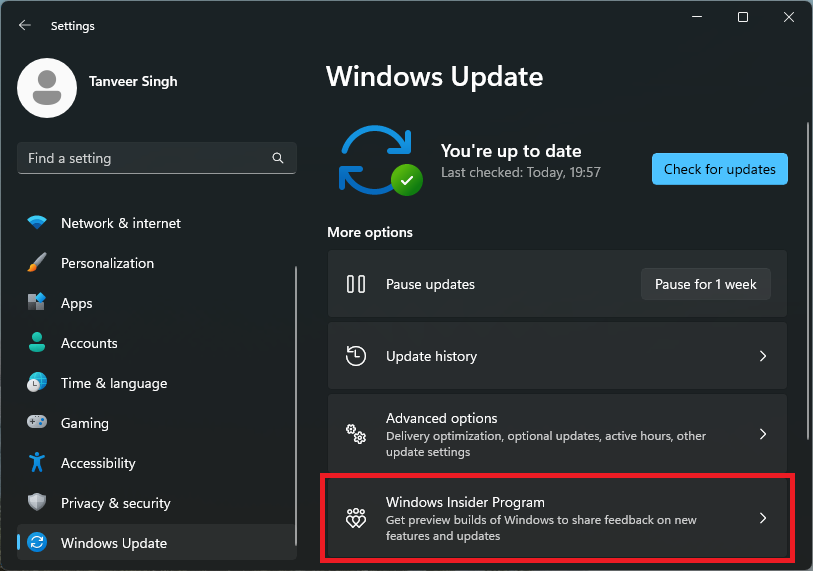

Activating the "Windows Insider Program" option under Windows Update in Settings.
  1. Once you’ve enrolled in the program, come back to the Windows Update screen to see the latest preview builds shown as available updates. Download and install the latest preview build and restart your computer.

Tip: if investing in a curved monitor is on your list of priorities this year, check out our recommendations for every budget.

Enable Lighting Control Using ViVeTool

ViVeTool is an open-source tool that allows you to enable experimental features that ship as part of Windows preview builds. It’s available as both a command-line tool and a GUI version. Follow the steps below to download, install, and use ViVeTool to enable the hidden RGB lighting control feature on Windows:

  1. Download ViVeTool from the GitHub download page.

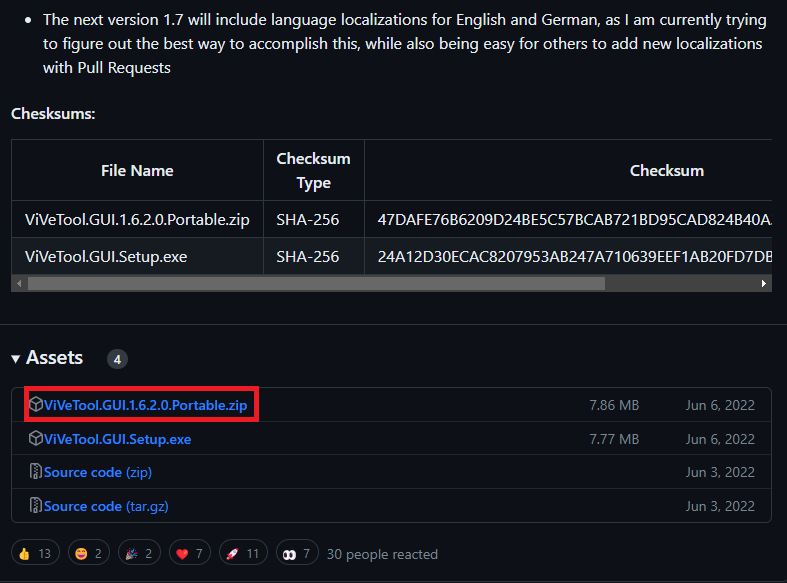

Downloading ViVeTool off GitHub page.
  1. Extract the files to any location of your choice and run the ViVeTool_GUI application from the extracted files.

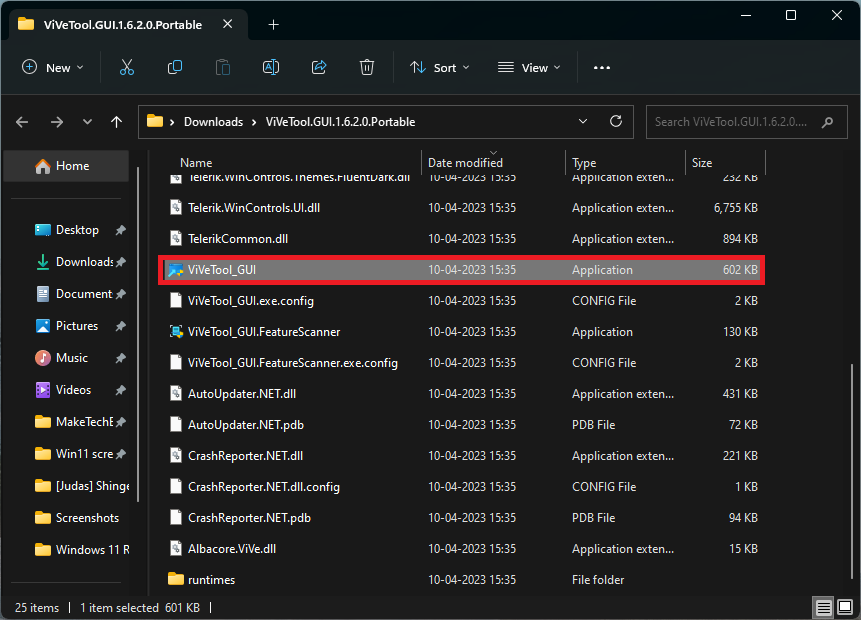

Installing ViVeTool_GUI executable on Windows.
  1. Select your build number from the drop-down menu on the top left. You can find your build number by accessing “Settings -> System -> About.” The build number will be listed next to “OS build” under “Windows specifications.”

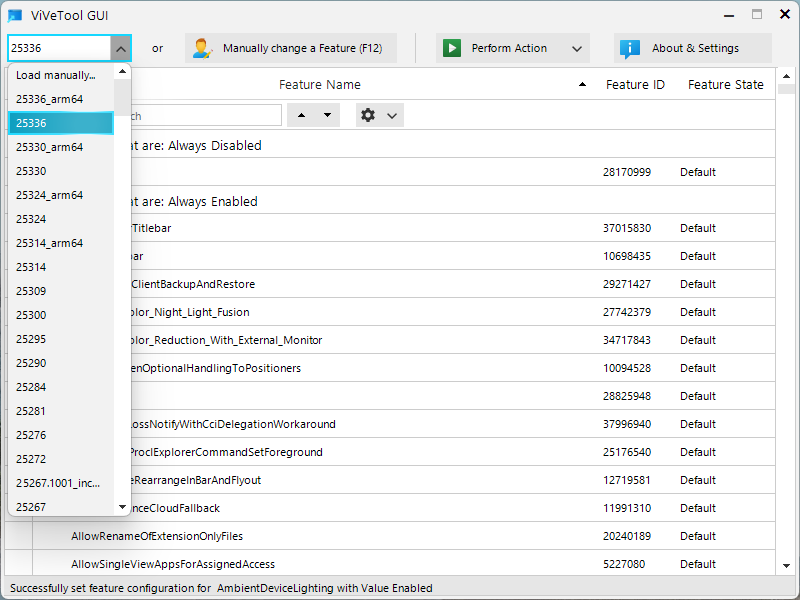

Selecting your Windows build number from ViVeTool GUI.
  1. After selecting your build number in ViVeTool, the window will be populated with all the available features for your build. In the search box, type “ambient” to find the AmbientDeviceLighting feature.

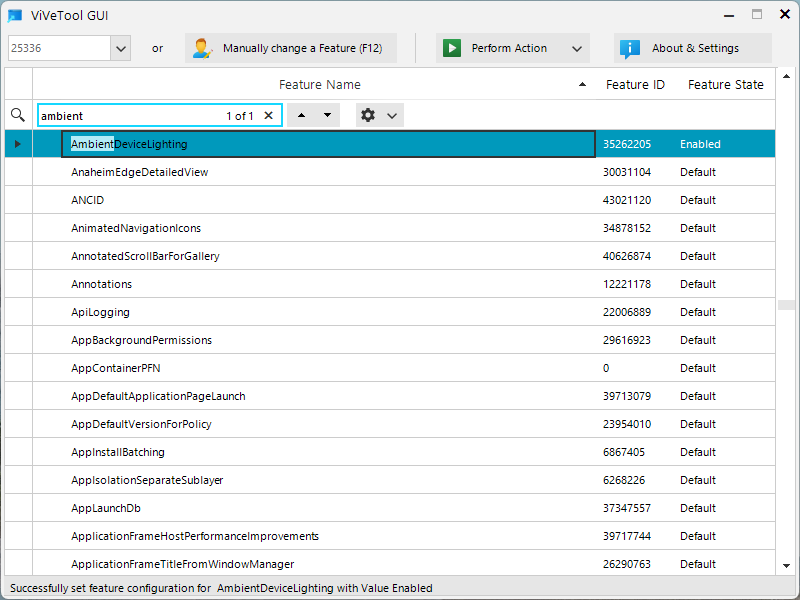

Searching for the AmbientDeviceLighting feature in ViVeTool GUI.

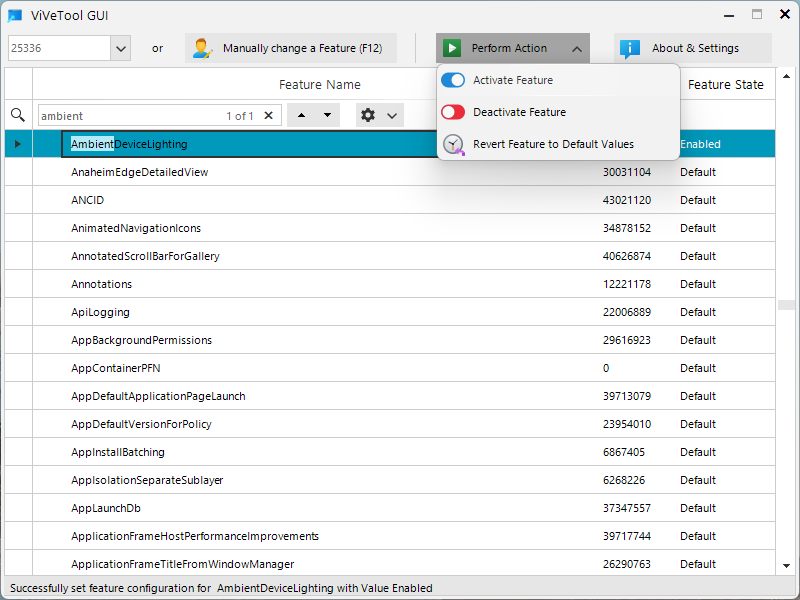

  1. Select “AmbientDeviceLighting” and click “Perform Action -> Activate Feature” to enable the lighting control feature in the Windows Settings app.
Activating the AmbientDeviceLighting feature in Windows Settings.

Tip: give your Windows desktop a new look with these cool 4K backgrounds.

Customize RGB Lighting via Settings

Once you’ve enabled the Lighting setting, you can access it in the Settings app. Follow the steps below to customize your RGB lighting using this feature:

  1. Press Win + I to open the Settings app. Select “Personalization -> Lighting.”

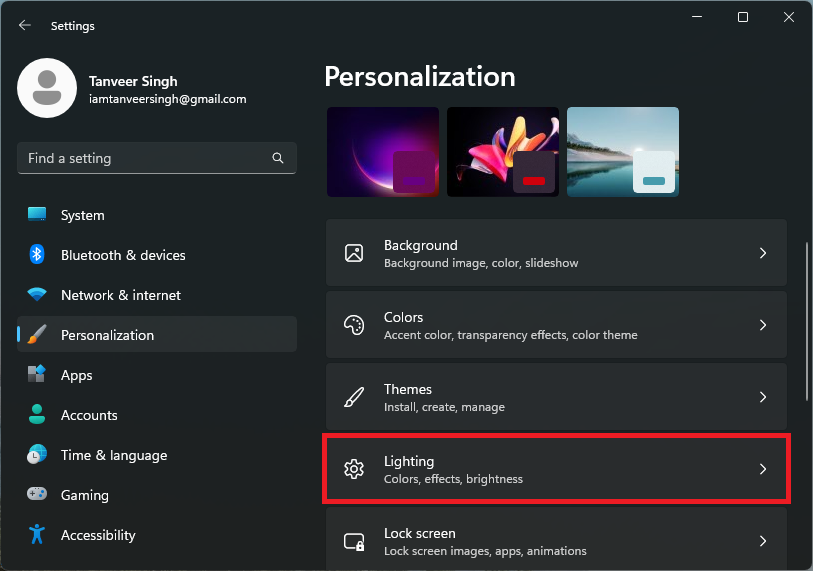

Accessing the "Lighting" option from Windows Settings.
  1. Toggle “Enable ambient lighting” to turn it on. All of your supported devices will show up, and you can customize lighting effects for each of them. Windows also allows you to sync other RGB lighting to your Windows accent color.

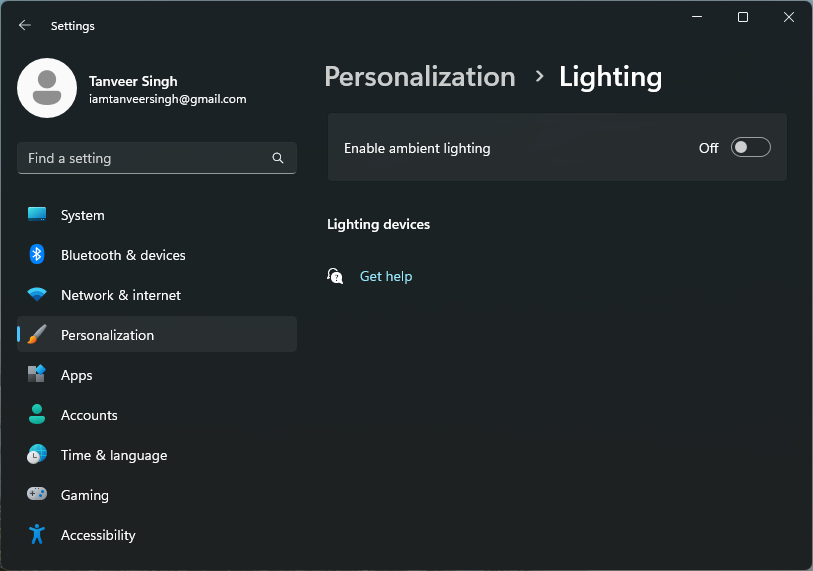

Turning on the "Enable ambient lighting" option.

Good to know: don’t like how the default Start menu looks in Windows 11? You can customize it according to your preferences.

Frequently Asked Questions

What's the Windows Insider Program?

The Windows Insider Program is Microsoft’s way of offering new and unreleased Windows features to curious users willing to try them before anyone else. As these preview builds are equipped with untested features, stability is often compromised. Users who are willing to accommodate some performance issues can enroll in this program and get access to new features before the general public.

Is ViVeTool safe to use?

ViVeTool is simply a third-party C# library used to enable features already present in your Windows build. By itself, it doesn’t introduce instability to your computer. Any performance issues are related to the experimental features you’re enabling in your build using ViVeTool. As long as you know enough about the features you’re enabling, using ViVeTool should be completely safe.

How do I know if my motherboard has RGB?

Using RGB lighting on your PC requires the proper RGB or ARG headers on your motherboard. Any mid-range to high-end motherboard released in the past five years is sure to have ARGB headers that allow you to directly connect your addressable RGB components to your motherboard.

Motherboards older than that may or may not have ARG headers, but you’re likely to find at least RGB headers on them. RGB headers limit the customization to only a few predefined colors and effects and do not allow you to implement custom colors and patterns. If you’re shopping for a new motherboard, check out the best 2023 gaming motherboards from Intel.
