MTE Explains: The Differences Between ARM and Intel

With the ever-present rumor of ARM MacBooks gaining renewed energy, it’s time to get an understanding of the technical differences between ARM processors and the more common x86 processors made by Intel and AMD.

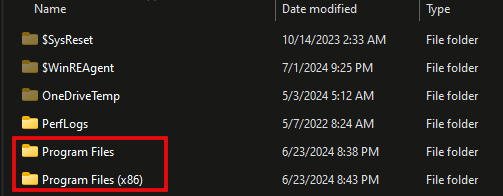

Intel processors found in desktop and laptop computers are sometimes referred to as “x86” processors. This can be a little confusing if you’ve ever noticed your two Program Files folders on Windows.

x86-arm-1

Windows 7, 8 and 10 refer to their 32-bit programs with the term “x86,” and their 64-bit programs (in some contexts) as “x64.” That isn’t strictly accurate. 64-bit-capable processors should be referred to as x86-64, but it’s a lot clunkier.

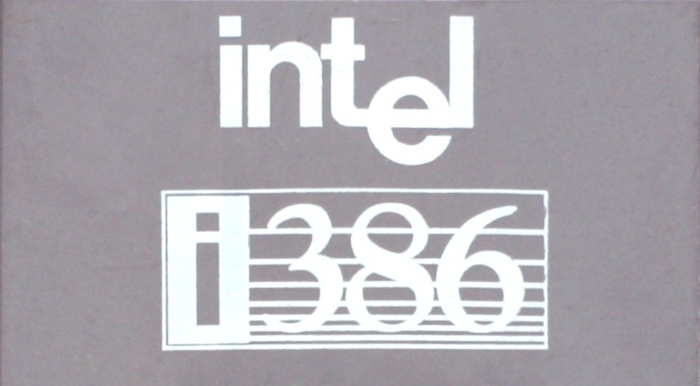

The “x86” name comes from the original 16-bit Intel processors that used the x86instruction set, the 8086. Future generations that shared the same instruction set also shared the same suffix, like the 80386. This kept on until the Pentium chips, which broke the naming convention, but we still use “x86” to refer to these kinds of chips.

8086-intel-chip

All processors are based around what’s called an “instruction set.” This is a set of rudimentary operations that a chip can perform and instructions for how to perform them. It tells the chip how to do basic math and move data around. The programming language for these instructions is called assembly language.

The core difference between ARM and x86 chips is their instruction set. x86 chips are CISC, which stands for “complex instruction set computing.” CISC chips attempt to represent a given task in the fewest lines of assembly as possible, abstracting away basic functions. These more complex operations also need to run over the course of multiple clock cycles. ARM chips are RISC, which stands for “reduced instruction set computing.” RISC chips include extremely rudimentary instruction sets, breaking every process down into extremely small, simple steps. Each of these smaller steps can be executed in a single clock cycle.

arm-vs-x86

If a CISC chip needs to multiply two numbers, it might run a single command: MULT 2, 3. This single command will cover loading numbers from memory, multiply them together, and store the result in the correct memory location. An RISC chip performing the same operation would require many more steps. First, a LOAD instruction to move the numbers from the registrars to the execution unit. Then, a PROD instruction to multiply the numbers. Finally, a STOR instruction to place the result in the correct register.

While the CISC chip might seem more efficient because its commands appear simpler, keep in mind a few important differences:

  • First, CISC chips execute commands over multiple clock cycles, while each instruction in a RISC chip is executed over a single clock cycle. Because of this, our hypothetical MULT command might run in the same amount of cycles as the set of RISC instructions that perform the same task.
  • Second, all of CISC’s instructions and logic need to be stored in transistors. RISC chips can use less transistors because they need to store fewer instructions.
  • Third, the lower number of transistors required by RISC allows for lower power usage.

There are some advantages to CISC. First, the computer doesn’t need to do much work to convert from a human-level programming language like C to processor-level assembly language. In fact, the MULT command mentioned above is very similar to the C command foo = foo * bar. RISC chips ask the compiler to do a lot more work to get code down into assembly language. CISC chips can also operate directly on main memory while RISC chips can only operate on CPU registers.

x86-arm-chipset

The other core difference between the architectures is power usage. Thanks to their reduced instruction sets, RISC chips require less transistors to function. This means that fewer transistors need to be powered, leading to power savings and heat reduction. This has lead to ARM chips powering nearly all mobile devices.

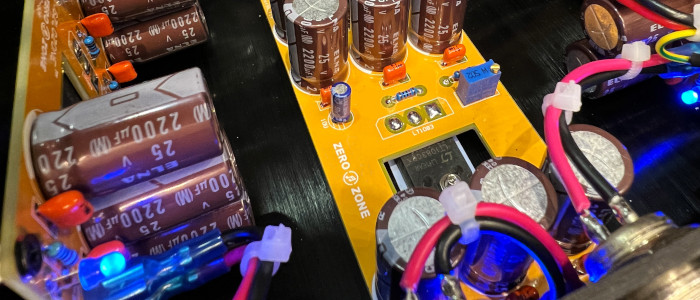

Intel and AMD’s x86 chips are better for desktop machines where power consumption isn’t as much of an issue. They’re also included in laptops which are obviously battery-powered. However, power isn’t at as much of a premium as in smartphones, allowing for more powerful chips.

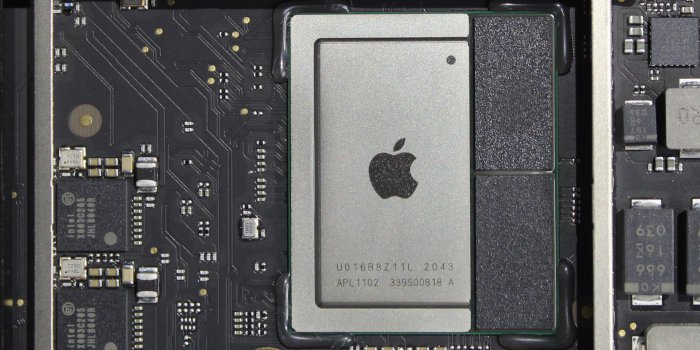

The most high-level distinction between the chips is based on power and speed. ARM chips are great for low-power environments but are typically slower, while x86 chips work quickly but are not as power-conscious. That basic generalization is changing, though, as Intel attempts to produce low-powered versions of its x86 chips, and ARM chips, like Apple’s A10 Fusion, begin to overtake laptop chips.
