How to Create a Virtual Machine With Windows 10 Hyper-V

If you are using Windows 8 or 10 then you might have heard about Hyper-V, a virtual machine software built into Windows. At first, Hyper-V was a part of Windows Server 2008, but later Microsoft made it available for all Windows 8 and 10 users. However, this feature is only available for Pro and Enterprise version users. Being a built-in feature, Hyper-V is much more integrated with Windows OS, and for power users, you can easily control and automate almost anything using the Powershell. So, if you are new to Hyper-V and want to try it out, here is how to enable it and create a new virtual machine.

Enable Hyper-V in Windows 10

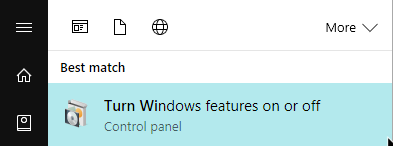

Even though Hyper-V is built into Windows 10, you need to enable it to use. To do that, search for “Turn Windows features on or off” in the Start menu and open it. Alternatively, you can also execute “optionalfeatures.exe” in the Run dialog box.

win10 hyper-v turn on or off windows features

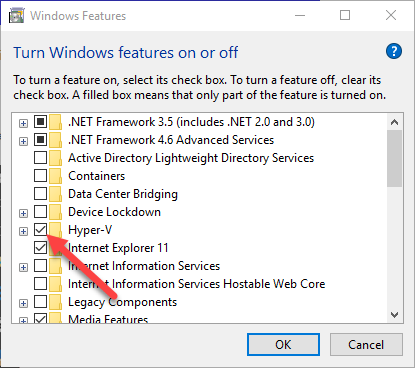

The above action will open the Windows Features window. Here, select the checkbox next to “Hyper-V” and click on the “OK” button.

win10 hyper-v turn on hyper-v

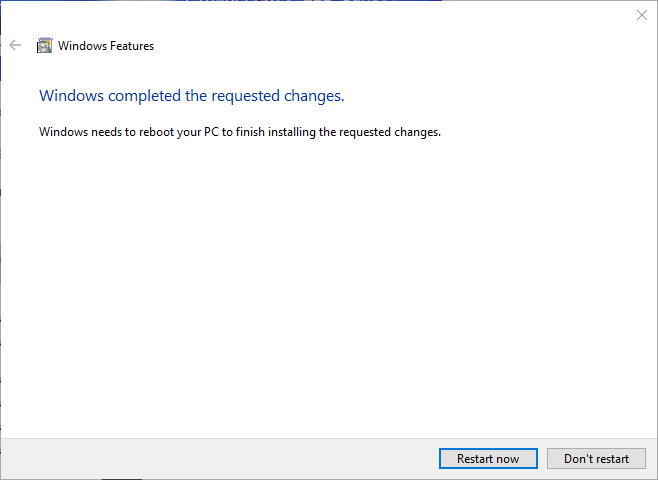

As soon as you click on the OK button, Windows will apply the changes and will ask you to restart the system to complete the procedure. So, save all your work and click on the “Restart Now” button.

win10 hyper-v restart windows

Create a Virtual Machine in Hyper-V

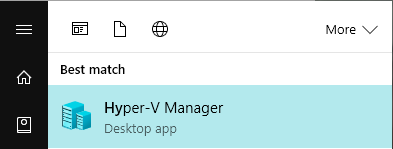

Once you restart the system, Hyper-V is enabled automatically. To create a virtual machine, search for the Hyper-V in the Start Menu and open it. If you cannot find it in the Start menu, you can also find Hyper-V in the “Control Panel -> Administrative Tools” folder.

win10 hyper-v search for hyper-v

After opening the Hyper-V, we need to create a Virtual Network Switch so that the virtual machine you create can access the Internet. To do that, click on the option “Virtual Switch Manager” appearing under the “Actions” section.

win10 hyper-v select virtual switch manager

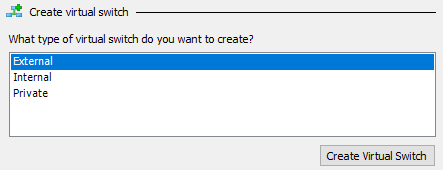

Here, select the option “External” from the right pane and then click on the button “Create Virtual Switch.”

win10 hyper-v select external

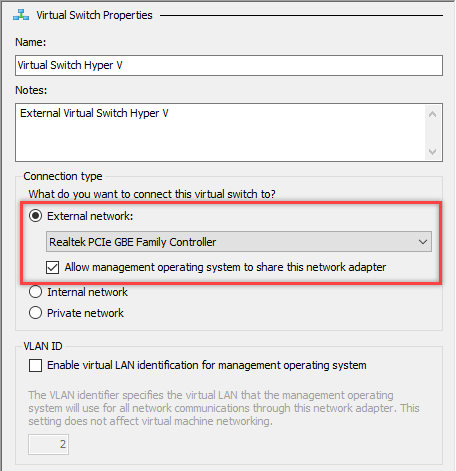

Now, name your virtual switch, select the connection type as “External network” and then select your network card from the drop-down menu. Select the checkbox “Allow management operating system to share this network adapter” and click on the “OK” button to save the changes.

win10 hyper-v virtual switch configuration

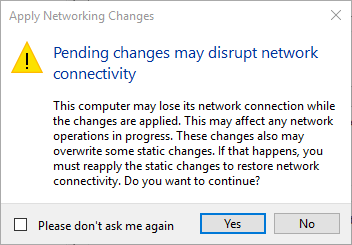

You may receive a warning message. Just click on the “Yes” button to continue.

win10 hyper-v network change warning

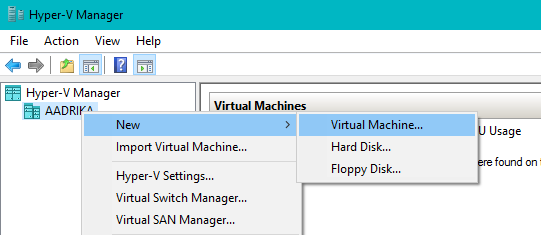

Once you are done with it, you are good to create the virtual machine. To start, right-click on your computer name under the Hyper-V manager and then select the option “New -> Virtual Machine.”

win10 hyper-v create new virtual machine

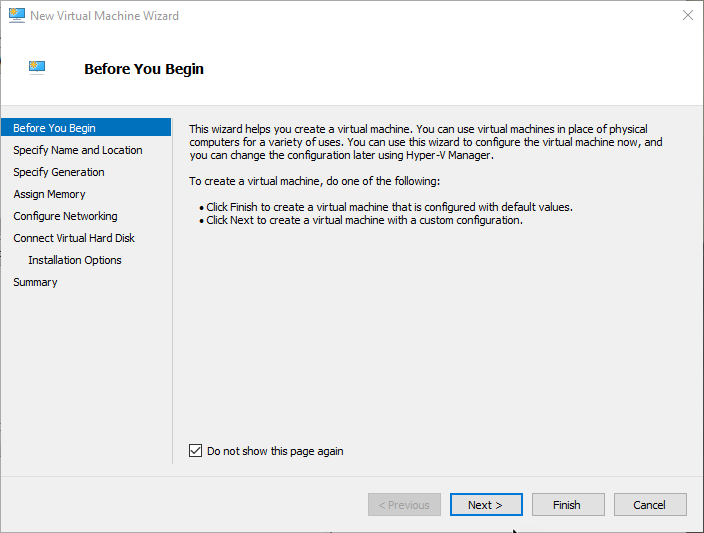

The above action will open a wizard; just click on the “Next” button to continue.

win10 hyper-v homescreen

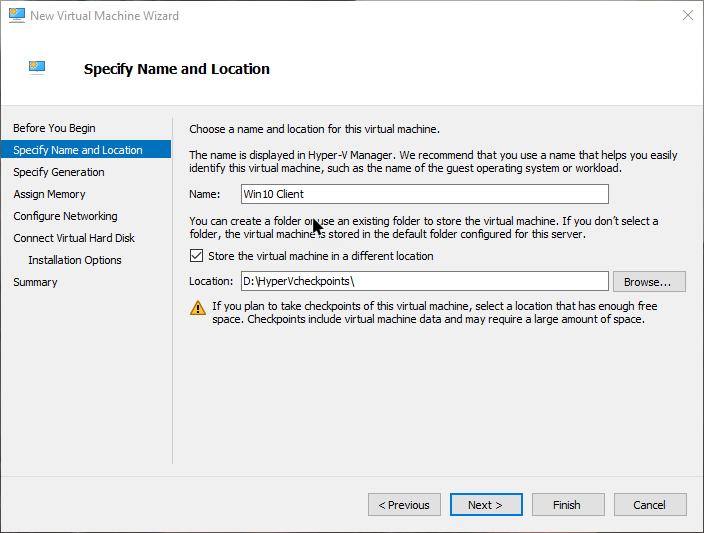

Here, specify the name of your new virtual machine, and click on the “Next” button. If you want to save your virtual machine in a different location, select the checkbox “Store the virtual machine in a different location.”

win10 hyper-v name virtual machine

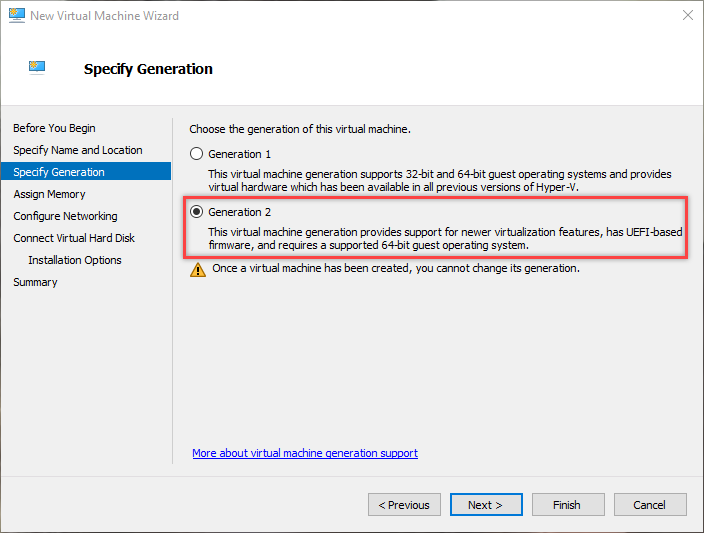

Now, if the guest operating system you want to install is 64-bit, then select the option “Generation 2.” Otherwise, select the option “Generation 1” and click on the “Next” button to continue. As I’m going to install a 64-bit operating system, I’m selecting the option “Generation 2.”

win10 hyper-v select generation

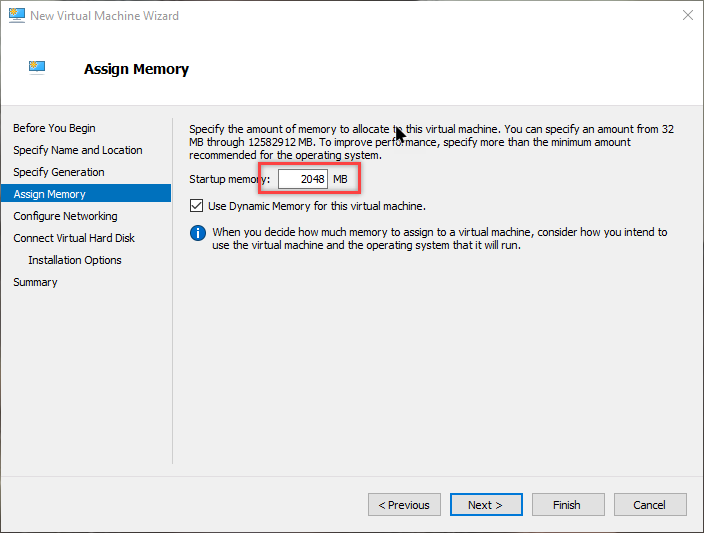

In this screen, allot how much memory you want to provide for the guest operating system. In my case, I’m allotting 2GB of memory.

win10 hyper-v allocate memory

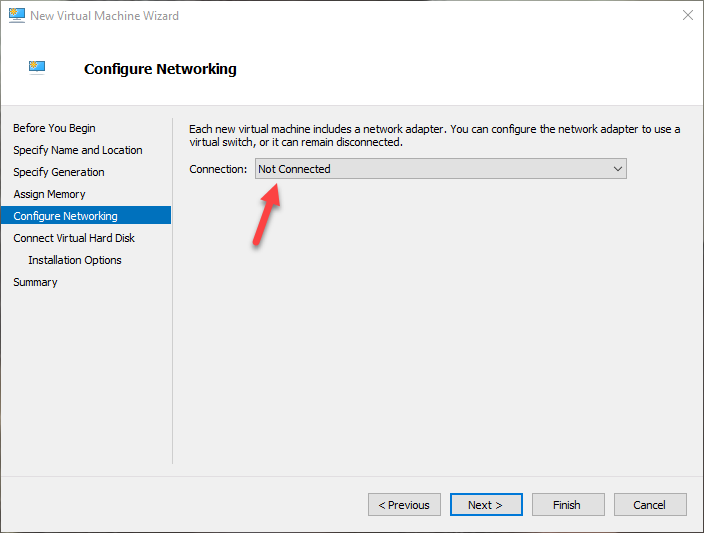

Here, select the virtual network switch that you created earlier from the drop-down menu. Even if you didn’t select any network connection, you can always configure it after creating the virtual machine.

win10 hyper-v select network

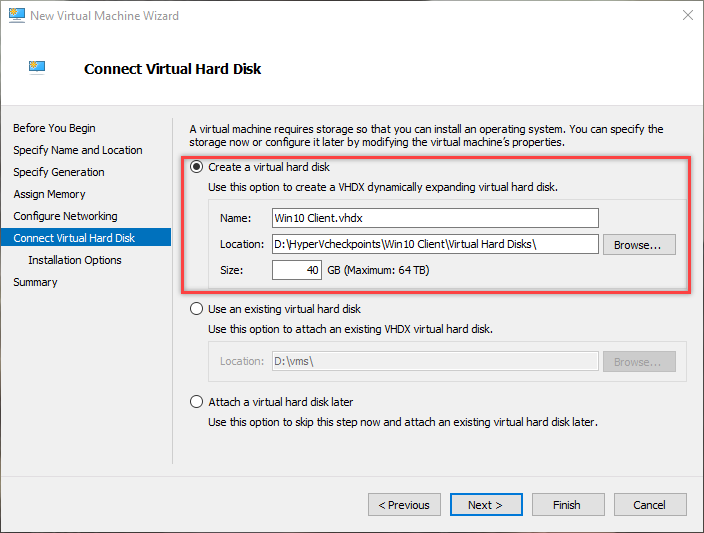

Now, let the default options be and click on the “Next ” button to continue. If you want to, you can change the disk size. In my case, I set it to 40GB.

win10 hyper-v virtual disk settings

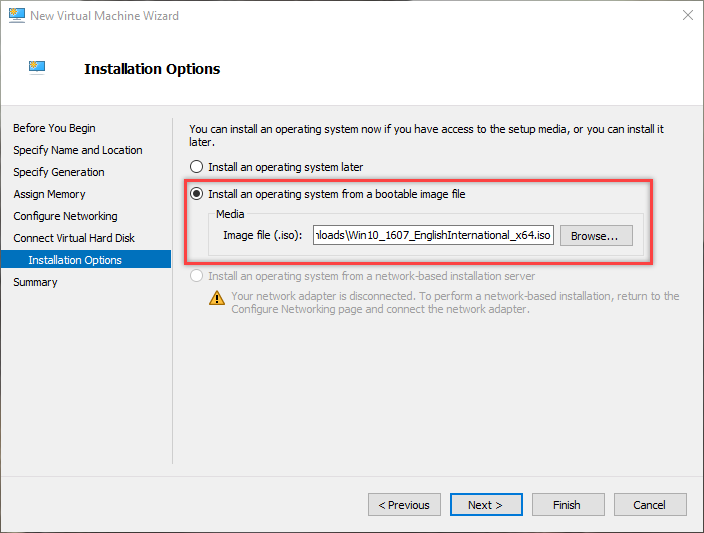

Here, select the radio button “Install an operating system from a bootable image file,” and select the ISO using the Browse button. In my case, I chose to install Windows 10 OS.

win10 hyper-v select disk image

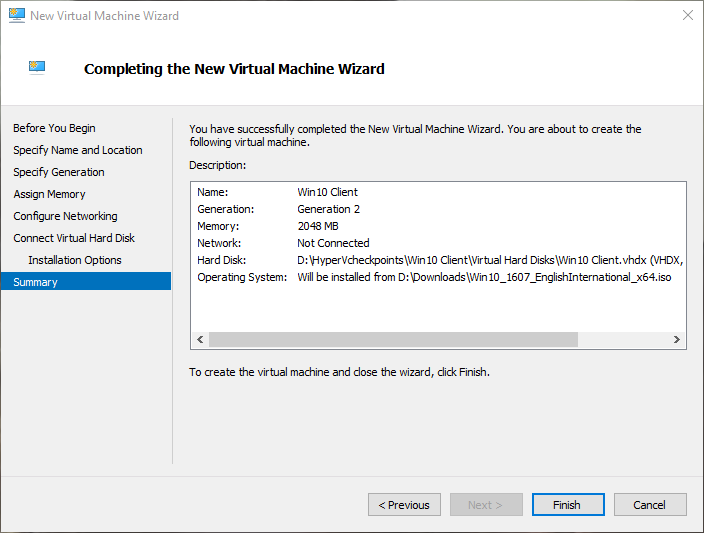

That’s it. Just verify all your settings in this screen and click on the “Finish” button to complete the procedure.

win10 hyper-v check configuration

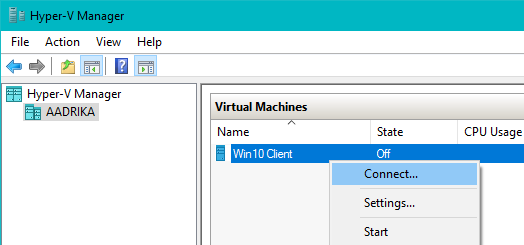

Now on the main screen right-click on the newly created virtual machine and select the option “Connect.”

win10 hyper-v click on connect

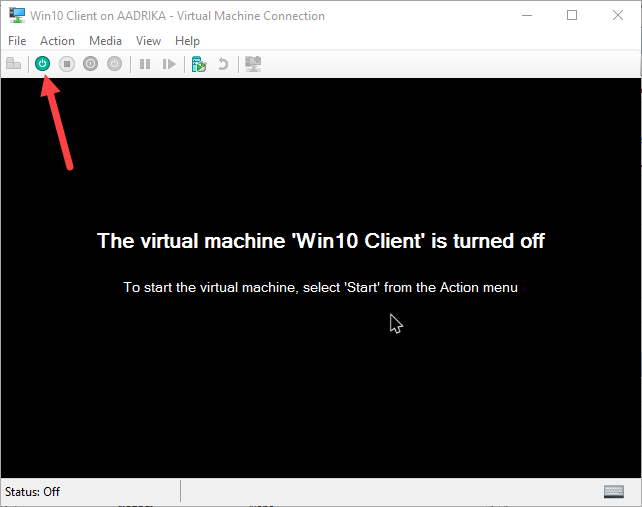

This will bring forward the virtual machine. Here, click on the Power icon to start the virtual machine.

win10 hyper-v virtual machine connected

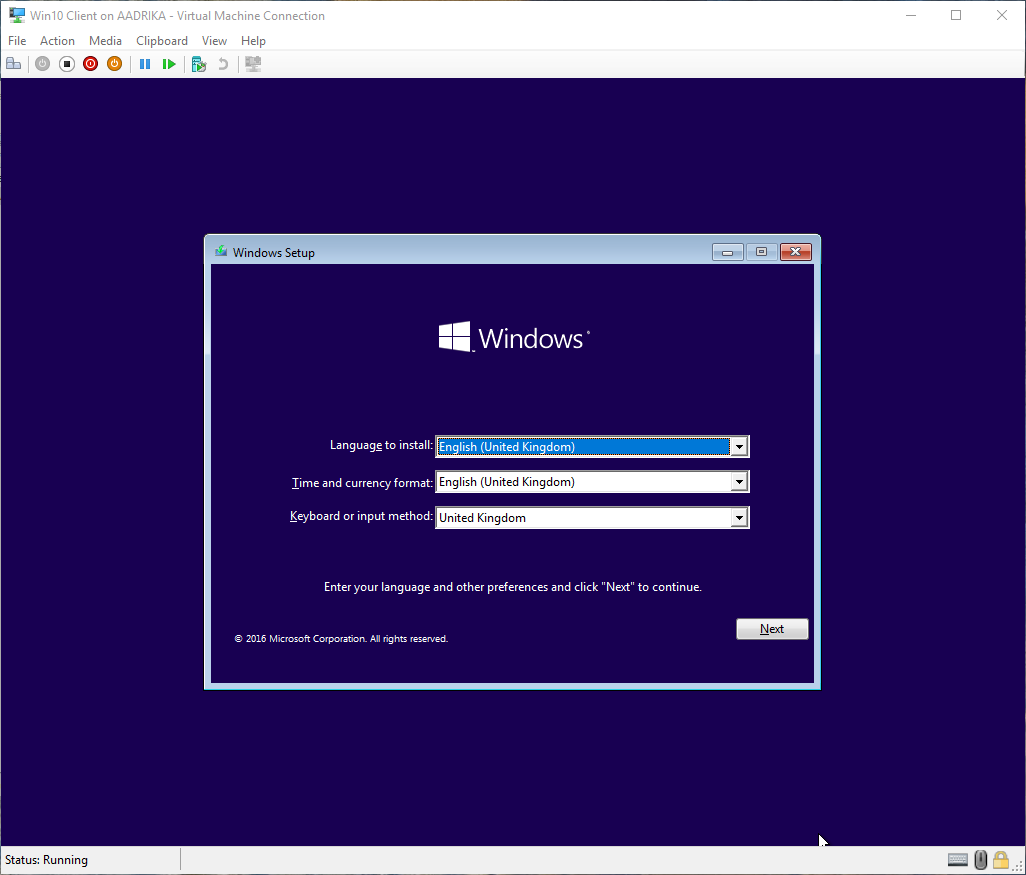

Just go through the on-screen instructions to install the guest operating system and you are good to go.

win10 hyper-v virtual machine created

Do comment below sharing your thoughts and experiences using Hyper-V to create virtual machines.
